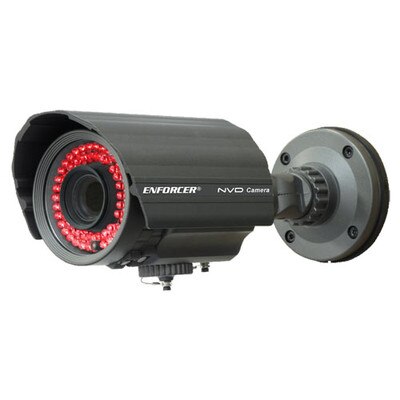

Seco-Larm Enforcer Bullet Camera, 3X Series, 600TV, 2.8~12mm, 56 LEDs
Product Description
Seco-Larm's new series of IR Day/Night Color Varifocal CCTV Cameras have 56 Hi-Intensity LEDs with DNR (Digital Noise Reduction), DSS (Digital Slow Shutter at 256x), and DWDR (Digital Wide Dynamic Range) all in one, as well as On Screen Display (OSD) with service monitor port. The two models in the series use the Sony color Super HAD II CCD chip and offer a resolution of 600 TV lines. Both also combine a rugged, weatherproof (IP 66) design with a sunscreen for either indoor or outdoor use.
DC Auto Iris Varifocal Lens: The focal length of the lens can be adjusted from 2.8mm to 12mm via a convenient adjustment screw under the camera. This allows the camera to be set to cover a wide area or focus in on a specific target.
Concealed Cabling Through the Camera Mount: The power and video cables are concealed in the mount between the camera and the mounting base in order to protect the cables and provide for a more attractive installation.
- 1/3" Sony Super HAD II CCD.
- Third-generation DSP chip.
- 600 TV Lines.
- Dual voltage: 12VDC/24VAC.
- Advanced 256x DSS (Digital Slow Shutter).
- OSD (On-Screen Display) for easy programming.
- DWDR (Digital Wide Dynamic Range) for clear images under strong backlighting.
- DNR (Digital Noise Reduction) for clear images in low light.
- Programmable 8-zone privacy settings.
- Cable concealed in the bracket for extra security.
- 56 IR LEDs for clear images in total darkness.
Tech Specs
- Type: IR LED Bullet Camera
- CCD: 1/3 inch Sony Super HAD II Color CCD
- Resolution: 600 TV lines
- Lens: DC Auto Iris,2.8 to 12 mm
- Number of Infrared LEDs: 56 (850nm)
- Effective pixels: 768 x 494 pixels
- Video output: 1.0Vp-p composite video, 75Ω
- Minimum illumination: 0.00006 Lux (LEDs on), 0.05 Lux (LEDs off)
- S/N ratio: >52 dB (AGC OFF)
- On-screen display: Built-in and controlled by internal joystick
- Motion detection: 4 zones
- Backlight compensation: HLC/BLC/Off
- White balance: ATW/AWC/MANUAL (1,800 to 10,500 degrees K)
- Digital Slow Shutter (DSS): 256x
- Electronic Shutter: Auto/Manual (adjustable range: 1/60 to 1/120,000 seconds)
- Auto gain: Selectable: Low, Middle, High, Off
- 3-DNR: DNR with filtering, On/Off (adjustable range 0 to 100)
- Day and Night: Selectable: Color, Auto, B/W
- Sharpness: On/Off (adjustable range: 0 to 31)
- Privacy: On/Off (8 programmable zones)
- IP rating: IP66
- Operating voltage: 12VDC/24VAC Dual Voltage
- Current draw: 12VDC, 200 mA, 24VAC, 3.6W(LEDs off), 12VDC, 600 mA, 24VAC, 12W (LEDs on)
- Operating temperature: 14 to 122 degrees F (-10 to 50 degrees C)
- Dimensions12 x 3.875 x 3.875 inches (305 x 100 x 100 mm)
