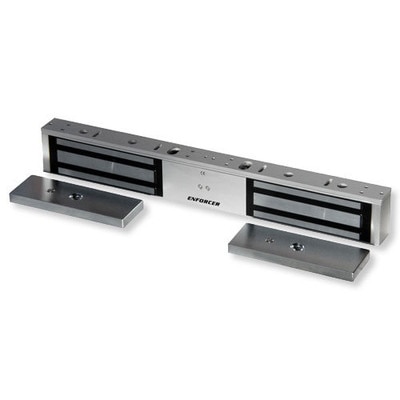

Seco-Larm Enforcer Double Door Maglock, 1,200 Lbs.
Product Description
- Anodized aluminum housing (US 28).
- 12 or 24 VDC (selectable).
- Built-in dual-color status LED and bond sensor to show locking status:
- Green: Door is closed and locked
- Red: Door not closed and/or locked
- Off: Door in use/no power
- No residual magnetism.
- Adjustable mounting bracket.
- MOV surge protection.
- Complete mounting hardware for typical installations.
- "L" bracket and "Z" brackets available for easy mounting.
- Detachable face plate.
- Bond sensor output: 3A at 12VDC.
- UL and ULC listed.
- CE listed.
- RoHS compliant.
Tech Specs
- Operating Voltage: 12 or 24VDC
- Holding Force: 1200 pounds. (545kg)/dr.
- Current Draw: 500mA at 12VDC/dr.; 250mA at 24VDC/dr.
- Voltage Tolerance: ±10 percent
- Temperature: 14 to 131° F (-10 to 55° C)
- Status Sensor: SPDT Relay: 2A at 12VDC
- Status LED (2-Color): Locked (Green), Unlocked (Red)
- Weight: 21 pounds (10kg)
