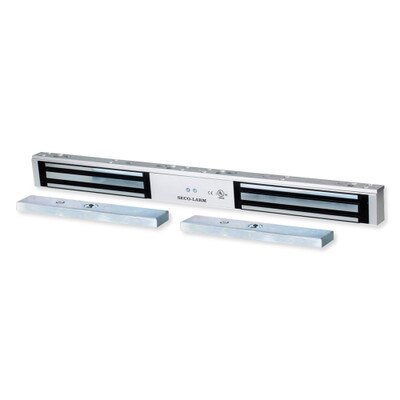

Seco-Larm Enforcer Double Door Electromagnetic Lock, 1200 lb.
Product Description
The Seco-Larm Enforcer Double-Door Electromagnetic Lock, 1200 lb secures double doors against unauthorized entry. When the electromagnetic lock is powered, it creates an extremely strong magnetic field. The electromagnets are strongly attracted to the steel armature plates mounted on the protected doors. The secured doors will open and close normally once the electromagnets are deactivated.
Features:
- Maintenance-free, factory-sealed design
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Detachable faceplate
- UL and ULC listed
- CE listed
- RoHS compliant
In The Box:
- 1 x Mounting plate
- 1 x Electromagnet
- 2 x Armature plate
- 2 x Armature screw
- 4 x Steel washers
- 2 x Rubber washer
- 2 x Door spacer
- 2 x Sexnut bolt
- 4 x Guide pins
- 8 x Long self-tapping screws
- 4 x Short self-tapping screws
- 4 x Hex-head mounting screws
- 4 x Tamper caps
- 1 x Allen wrench
Tech Specs
- Part Number: E-941DA-1K2Q
- UPC: 676544009801
- Holding Force: 1,200-lb (545kg) per door
- Operating Voltage: 12 or 24 VDC±10%
- Current Draw:
- 500mA@12VDC per door (1A total)
- 250mA@24VDC per door (500mA total)
- Operating Temperature: 14°~131° F (-10°~55° C)
- Certification: UL, ULC, CE
- Electromagnet Dimensions: 21" x 1-5/8" x 2-5/8" (536 x 42 x 67 mm)
- RoHS Compliance: Yes
- Armature Dimensions: 7-1/4" x 5/8" x 2-3/8" (185 x 16 x 61 mm)
- Case Shipping Weight: 43-lb (19.5kg)
- Weight: 21-lb (10kg)
- Warranty: Limited lifetime
