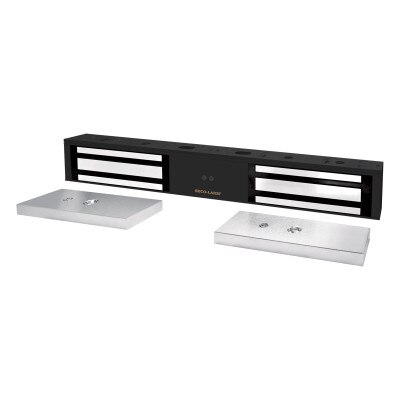

Seco-Larm Enforcer Double Door Electromagnetic Lock with Bond Sensor, 1,200 Lbs.

$301.40
SKU: SEE941DB1K2P

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Seco-Larm Enforcer Double Door Electromagnetic Lock with Bond Sensor, 1,200 Lbs, Black, uses 1,200 pounds of holding force to secure a double door against unauthorized entry. It features a built-in bond sensor with a dry relay output (3A@12VDC) to monitor the door status as well as LEDs to show the lock/unlock status of the door. This lock has an anodized aluminum housing with a black finish and comes with an adjustable mounting bracket and detachable faceplate for easy access to wiring. It offers MOV surge protection and has no residual magnetism once it's deactivated.

  • Provides 1,200 pounds (545kg) of hold force and has no residual magnetism once deactivated
  • MOV surge protection for reliable, long-lasting use

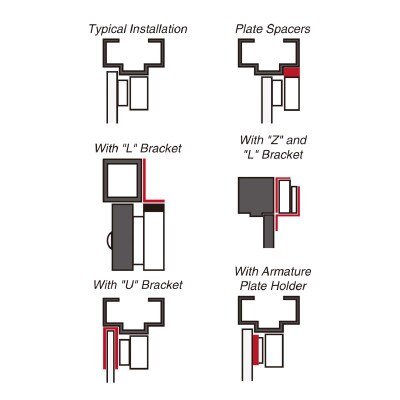

  • Adjustable mounting bracket with detachable faceplate
  • Includes complete mounting hardware
  • Limited Lifetime Warranty

Why You Would Use This Product:

The Seco-Larm Enforcer Electromagnetic Lock provides an ideal solution for securing a double door against unauthorized entry. When the lock is powered, it creates a strong magnetic field (1,200 lbs. of holding force) that attracts the lock to a steel armature plate that's mounted onto a door. Once locked, the door can only be opened when you deactivate the electromagnetic lock.

In The Box:

  • Electromagnet
  • Mounting Plate
  • 2 x Door Spacer
  • 4 x Steel Washers
  • 2 x Rubber Washer
  • 8 x Long Self-Tapping Screws
  • 4 x Short Self-Tapping Screws
  • 2 x Sexnut Bolt
  • 4 x Guide Pins
  • 2 x Door Spacer
  • 4 x Hex-head Mounting Screws
  • 4 x Tamper Caps
  • Hex Wrench
  • 2 x Armature Plate
  • 2 x Armature Screw
  • Manual

Tech Specs

  • Part Number: E-941DB-1K2P
  • UPC: 676544021957
  • Color: Black
  • Holding Force: 1200-lb (545kg) per door
  • Operating Voltage: 12/24 VDC (selectable)
  • Current Draw: 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total)
  • Bond Sensor Relay: Yes
  • Status LED: Yes
  • Operating Temperature: 32°~120° F (0°~49° C)

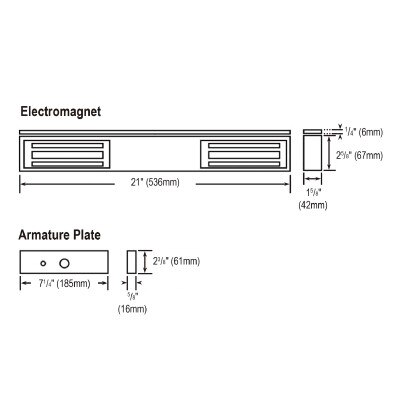

  • Electromagnetic Dimensions: 21" x 2-5/8" x 1-5/8" (536x67x42 mm)
  • Armature Dimensions: 7-1/4"x2-3/8"x5/8" (185x61x16 mm)
  • Destructive Attack: Level I
  • Line Security: Level I
  • Standby Power: Level I
  • Endurance: Level IV
  • Weight: 21-lb 6-oz (10kg)
  • Certifications:
    • UL294 Access Control System Units – USA
    • UL10C Positive Pressure Fire Test – USA
    • UL10B Fire Test of Door Assemblies – USA
    • ULC-S104 Fire Test of Door Assemblies – Canada
  • Warranty: Limited Lifetime
