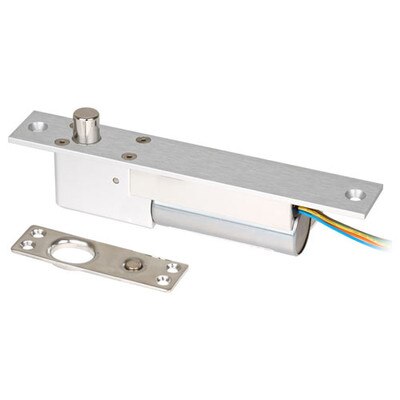

Seco-Larm Enforcer Electric Deadbolt, Fail-Safe, 12/24 VDC
Product Description
Seco-Larm Electric Deadbolts are designed for hollow metal door frames. They are not recommended for wooden door frames. However, door can be wood or metal.
- Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of electrical operation.
- Fail-safe operation (unlocks if power is lost).
- Status sensor (Door open/close monitor): SPDT, 500mA at 12VDC(NO/NC/COM).
- Adjustable door lock delay timer (0, 2.5, 5, or 9 sec).
- Control wire allows release without cutting unit's power.
- Magnetic switch determines door position for positive locking.
- Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out.
- Use with an optional digital keypad for high security without a key.
- Easily connects to Seco-Larm's Electronic Keypads.
- Suitable for office-type applications.
- Shallow design for use with most metal door jambs.
- No limiting installation orientation.
- Powered by a solenoid.
- Stainless steel for strength and long life. Operating lifetime: 1,000,000 operations.
In The Box:
- 1 x Lock body
- 1 x Strike plate
- 1 x Faceplate
- 1 x 6-Pin connector
- 2 x Large mounting tabs
- 2 x Small mounting tabs
- Mounting screws
- 4 x Templates
Tech Specs
- Plastic Material: Tefulon Polymonochlorotrifluoethylene.
- Operation: Fail-safe
- Operation Voltage: 12VDC
- Operating Lifetime: 1,000,000 operations
- Current Draw:
- Standby: 340mA at 12VDC / 180mA at 24VDC
- Active: 900mA at 12VDC / 440mA at 24VDC
- Over-Current Protection: 1.5A
- Status Sensor: SPDT, 500mA at 12VDC (NO/NC/COM)
- Adjustable Delay Timer: 0/2.5/5/9 seconds
- Lock Body Dimensions:
- Faceplate: 7-7/8 x 1-5/16 inches (200 x 32 mm)
- Cavity: 5-3/4 x 1-1/8 x 1-1/2 inches (145 x 28 x 38 mm)
- Strike Plate Dimensions: 3-9/16 x 1 x 1-1/8 inches (90 x 25 x 33 mm)
- Bolt: Stainless steel, 5/8" diameter, 5/8" throw
- Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
- Weight: 1 pound, 13 ounces (0.8kg)
