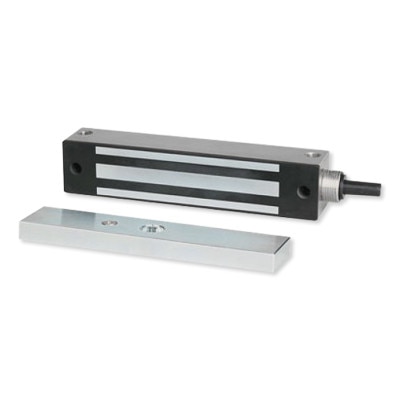

Seco-Larm Enforcer Electromagnetic Gate Lock, Face or Surface Mount, 600 Lbs.
Product Description
The Seco-Larm Enforcer Electromagnetic Gate Lock, Face or Surface Mount, 600 Lbs. secures heavy swinging or sliding gates against unauthorized entry. When the electromagnetic lock is powered, it creates an extremely strong magnetic field. The electromagnets are strongly attracted to the steel armature plates mounted on the protected gates. The secured gates will open and close normally once the electromagnets are deactivated.
- Face and side (surface) mounting
- For indoor & outdoor applications
- For sliding or swinging gates
- Waterproof (IP67) and vandal resistant
- Maintenance-free, factory-sealed design
- Dual-threaded conduit fitting
- Attractive stainless-steel housing
- 3ft (91cm) Hookup cord
- Dual voltage: 12/24 VDC Operation
- No residual magnetism
- MOV Surge protection
- Fail-Safe operation – unlocks on power loss
- Complete mounting hardware included
- "L" and "Z" brackets available
In The Box:
- Electromagnet
- Armature plate
- 2 metal washers
- Rubber washer
- Sexnut bolt
- Armature screw
- 12 x Tamper caps
- Hex wrench
- 4 x Long hex screws (for surface mounting)
- 4 x Short hex screws (for face mounting)
- Blind nut tool
- 4 x Blind nuts
- 2 x Long guide pins
- 2 x Short guide pins
Tech Specs
- Part Number: E-946FC-600Q
- UPC: 033020373090
- Holding Force: 600-lb (272kg)
- Operating Voltage: 12/24 VDC
- Current Draw:
- 500mA at 12VDC
- 250mA at 24VDC
- Housing Material: Stainless Steel
- Operating Temperature: 14° to 131° F (10° to 55° C)
- Weight: 6 lbs (2.7kg)
- Dimensions:
- Electromagnet: 8 x 1-11/16 x 1-9/16 inches (203 x 43 x 40 mm)
- Armature plate: 7-1/4 x 1-5/8 x 9/16 inches (185 x 41 x 14 mm)
- Certifications: RoHS
- Warranty: 1-Year
