  • Seco-Larm Enforcer Gate Maglock, 600 Lbs. with Weldable Bracket

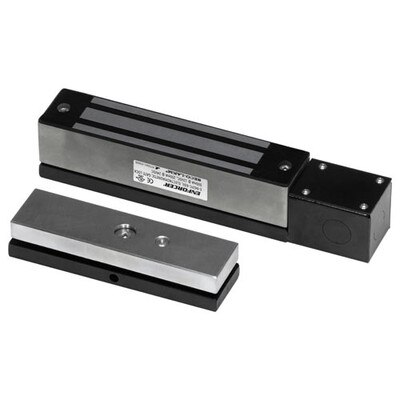

Seco-Larm Enforcer Gate Maglock, 600 Lbs. with Weldable Bracket

$273.73
SKU: SEE942FC600SQ

Order now and we'll ship usually within 3-5 business days.

Shop More From Seco-Larm

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

  • For outdoor sliding and swinging electric gates.
  • Brackets can be welded or bolted directly to gate.
  • Brackets are zinc-plated for corrosion resistance.
  • Brackets have black finish to match most gates.
  • Lock is water and vandal resistant.
  • Lock has attractive stainless-steel finish.
  • Maintenance-free, factory-sealed design.
  • Holding force – 1,300 pounds.
  • 12 or 24 VDC (selectable).
  • No residual magnetism.
  • MOV surge protection.
  • Pre-wired for 12VDC operation.
  • Adapter and mounting hardware included.

Tech Specs

  • Operating Voltage: 12VDC or 24VDC
  • Holding Force: 600 pounds (272 kg)
  • Power Supply
    • Input: 100~240 VAC at 50/60Hz
    • Output: 12VDC at 1.0A
  • Current Draw: 500mA at 12VDC, 250mA at 24VDC/li>
  • Temperature: 14 to 131 degrees F (-10 to 55 degrees C)
  • Magnet size: 8 x 2-11/16 x 1-9/16 inches (203 x 42 x 39 mm)
  • Armature size: 6-1/4 x 1-3/8 x 5/8 inches (159 x 41 x 16 mm)
  • Junction box: 2-1/2 x 2-1/2 x 2 inches (63 x 63 x 50 mm)
  • Overall bracket (with maglock installed): 10-1/2 x1 -7/8 x 2-1/8 inches (267 x 63 x 48 mm)
  • Weight: 4 pounds 6 ounces (2kg)
  • Cable length: 12 inches
  • Certification: UL for maglock only
  • RoHS compliance: Yes
