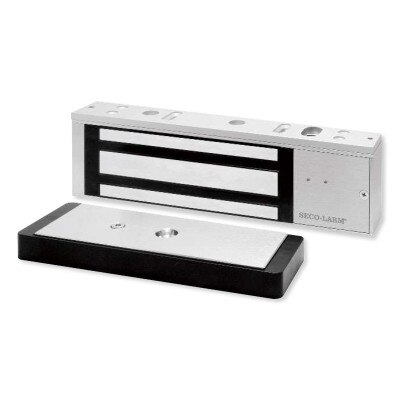

Seco-Larm Enforcer Electromagnetic Lock with LED, Bond & Door Position Sensor, 1,200 Lbs.
Product Description
The Seco-Larm Enforcer Electromagnetic Lock with LED, Bond & Door Position Sensor, 1,200 Lbs. provides a secure way to keep your door closed. It features a built-in bond sensor with 3A-amp dry relay output for monitoring door lock status as well as built-in dual-color LEDs and door position sensor to show the lock status and open/closed status.
- UL 294 Listed (Access Control)
- Built-in bond sensor with 3A-amp dry relay output for monitoring door lock status
- Built-in dual-color status LED shows lock status
- Built-in door position sensor shows open/closed status (1/2" gap)
- Armature plate holder for door position sensor

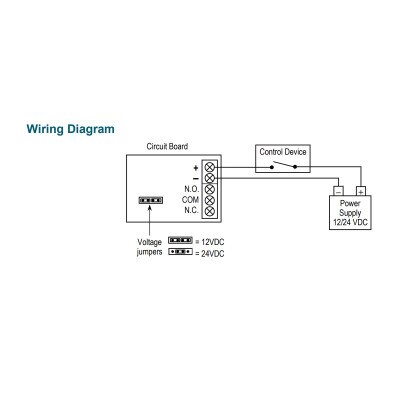

- Dual voltage: 12/24VDC selectable
- Anodized aluminum housing (US28)
- No residual magnetism
- MOV surge protection
- Detachable faceplate
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- "L" bracket (E-941S-600/LQ), "Z" brackets (E-941S-600/ZQ) available for easy mounting
In The Box:
- Electromagnet
- Armature plate (2) Short self-tapping screws
- Armature screw
- 2 x Steel washers
- Rubber washer
- 4 x Long self-tapping screws
- Sexnut bolt
- 2 x Guide pins
- Door spacer
- 2 x Hex-head mounting screws
- Mounting plate
- 2 x Tamper caps
- 2 x Hex wrenches
- Armature plate holder
- Manual
Tech Specs
- Part Number: E-941SA-1K2DPSQ
- UPC: 676544021513
- Endurance: Level IV
- Destructive Attack: Level 1
- Line Security: Level 1
- Standby Power: Level 1
- Holding Force: 1,200-lb
- UL Listed: UL 294, ULC S104, UL 10B, UL 10C
- Operating Voltage: 12/24 VDC
- Current Draw: 12VDC: 500mA 24VDC: 250mA
- Housing Material: Reed switch, 0.2A@12VDC
- Operating Temperature: 32°~120°F (0°~49°C)
- Electromagnet Dimensions: 10-1/2 x 2-7/16 x 9/16 inches (267 x 62 x 40 mm)
- Armature Dimensions: 7-1/4 x 7/16 x 5/8 inches (185 x 38 x 12 mm)
- Bond Sensor: SPDT relay, 3A@12VDC
- Certifications: UL 294, CE, RoHS
- Warranty: 1 Year
