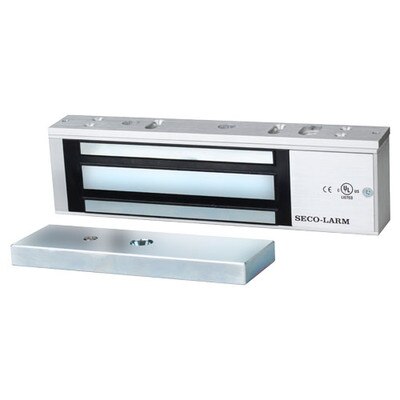

Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor, 1,200 Lbs. with Timer
Product Description
1200 Pound Holding Force Electromagnetic Lock with status sensor, LED status display and adjustable time delay.
- Built-in dual-color status LED and bond sensor to show locking status: (see above)
- Built-in adjustable door-relock timer, 1~78 sec.
- Anodized aluminum housing (US 28).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- Adjustable mounting bracket.
- MOV surge protection.
- Complete mounting hardware for typical installations.
- "L", "Z" and "U" brackets available for easy mounting.
- Detachable face plate.
Tech Specs
- Holding Force: 1,200 pounds (545kg)
- Current Draw: 500mA at 12VDC, 250mA at 24VDC
- Operating Voltage: 12 or 24 VDC ±10 percent
- Temperature: 14° to 131° F (-10° to 55° C)
- Magnet Size: 10-1/2 x 1-5/8 x 2-5/8 inches (268 x 42 x 67 mm)
- Armature Size: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 61 mm)
- Weight: 10 pounds, 8 ounces (5kg)
