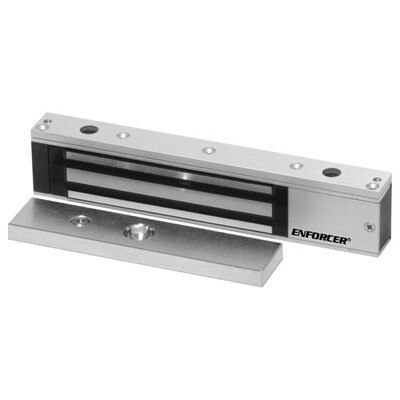

Seco-Larm Enforcer Maglock, 300 Lbs.
Product Description
The E-941SA-300RQ electromagnetic lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
- Perfect for cabinets, small enclosures, or pedestrian gates.
- Holding force: 300-lb (136kg).
- Reversible installation and selectable 12/24 VDC operation.
- Anodized aluminum housing.
- No residual magnetism.
- Detachable mounting bracket for easy installation.
- "L", "Z" and "U" brackets available for easy mounting.
- MOV surge protection.
- Complete mounting hardware included.
- RoHS compliant.
In The Box:
- 1 x Mounting plate
- 1 x Electromagnet
- 1 x Armature plate
- 1 x Armature screw
- 2 x Steel washers
- 1 x Rubber washer
- 1 x Sexnut bolt
- 2 x Guide pins
- 5 x Long self-tapping screws
- 2 x Hex-head mounting screws
- 2 x Tamper caps
- 2 x Allen wrenches
Tech Specs
- Holding force: 300 pounds (136kg)
- Operating voltage: 12VDC, ±10 percent
- Current draw: 420mA at 12VDC, 210mA at 24VDC
- Temperature: 14 to 131 degrees F (-10 to 55 degrees C)
- Magnet size: 7-7/8 x 1-3/8 x 15/16 inches (200 x 35 x 24 mm)
- Armature size: 6 x 3/8 x 1-1/4 inches (152 x 10 x 32 mm)
- RoHS compliant: Yes
- Weight: 3 pounds, 5 ounces (1.5kg)
