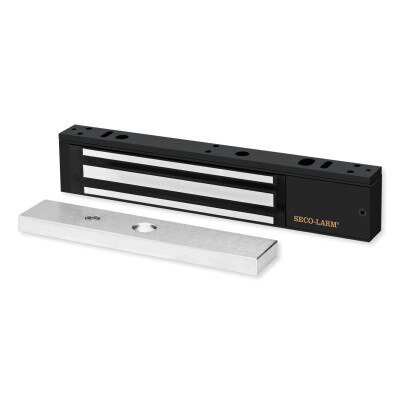

Seco-Larm Enforcer Electromagnetic Lock, 600 Lbs.

$104.81
SKU: SEE941SB600

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm Enforcer Electromagnetic Lock, 600 Lbs, Black, uses 600 pounds of holding force to secure a door against unauthorized entry. This lock has an anodized aluminum housing with a black finish and comes with an adjustable mounting bracket and detachable faceplate for easy access to wiring. It offers MOV surge protection and has no residual magnetism once it's deactivated.

  • Provides 600 pounds (272kg) of hold force and has no residual magnetism once deactivated
  • MOV surge protection for reliable, long-lasting use
  • Adjustable mounting bracket with detachable faceplate
  • Includes complete mounting hardware
  • Limited Lifetime Warranty

Why You Would Use This Product:

The Seco-Larm Enforcer Electromagnetic Lock provides an ideal solution for securing a door against unauthorized entry. When the lock is powered, it creates a strong magnetic field (600 lbs. of holding force) that attracts the lock to a steel armature plate that's mounted onto a door. Once locked, the door can only be opened when you deactivate the electromagnetic lock.

In The Box:

  • Electromagnet
  • Mounting Plate
  • Door Spacer
  • 2 x Steel Washers
  • Rubber Washer
  • 4 x Long Self-Tapping Screws
  • 2 x Short Self-Tapping Screws
  • Sexnut Bolt
  • 2 x Guide Pins
  • Door Spacer
  • 2 x Hex-head Mounting Screws
  • 2 x Tamper Caps
  • 2 x Hex Wrenches
  • Armature Plate
  • Armature Screw
  • Manual

Tech Specs

  • Part Number: E-941SB-600
  • Color: Black
  • Holding Force: 600-lb (272kg)
  • Static Strength: 500-lb
  • Dynamic Strength: 50 ft-lb
  • Endurance: 250,000 cycles
  • Operating Voltage: 12/24 VDC (selectable)
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Door Thickness (max.): 2" (50mm)
  • Dimensions – Magnet: 9-13/16"x1-11/16"x1" (250x43x25 mm)
  • Dimensions – Armature Plate: 7-1/4"x1-1/2"x1/2" (185x38x12 mm)
  • Operating Humidity: 0~85 (non-condensing)
  • Operating Temperature: 32°~120° F (0°~49° C)
  • Lock Surface Temperature: ≤ Ambient temperature ± 68° F (20° C)
  • Destructive Attack: Level I
  • Line Security: Level I
  • Standby Power: Level I
  • Endurance: Level IV
  • Weight: 4-lb 6-oz (2kg)
  • Certifications:
    • UL294 Access Control System Units – USA
    • UL1034 Burglary Resistant Electric Lock – USA
    • UL864 Fire Alarm Systems – USA
    • UL10C Positive Pressure Fire Test – USA
    • UL10B Fire Test of Door Assemblies – USA
    • ULC-S104 Fire Test of Door Assemblies – Canada
  • Warranty: Limited Lifetime
