Seco-Larm Enforcer HDMI Extender with KVM, 4K


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

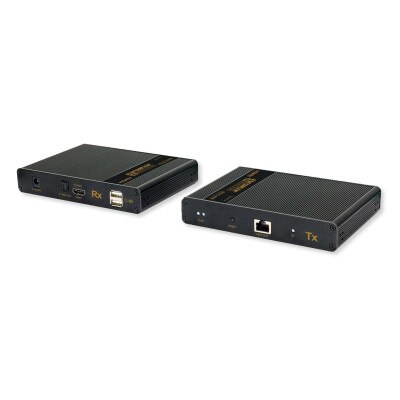

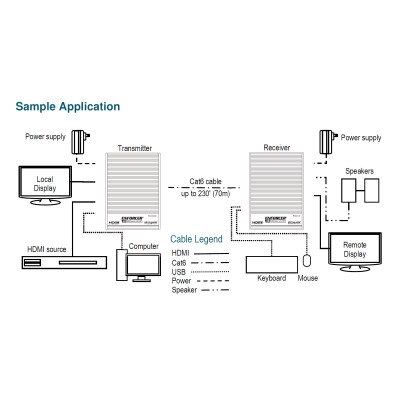

The Seco-Larm Enforcer HDMI Extender with KVM (4K) allows you to transmit HDMI audio and video as well as a USB (2.0) signal up to 230ft (70m) over a single Cat6 cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR. The extenders also provide HDMI loop-out and KVM.

  • Display up to 4K@60Hz
  • Zero latency transmission up to 230ft (70m) over single Cat6/7
  • Supports USB keyboard and mouse (KVM)
  • Supports point to point connections
  • Transmitter includes HDMI loop-out
  • Lightning Protection, surge protection, and ESD protection
  • Receiver has an optical S/PDIF out if an AVR or sound bar is fitted in the remote location

In The Box:

  • HDMI Transmitter
  • HDMI Receiver
  • 8 x Mounting Brackets
  • 18 x Mounting Screws
  • USB Cable
  • 2 x Power Adapters
  • Manual

Tech Specs

  • Part Number: MVE-AH1E1-42UQ
  • UPC: 676544021827
  • Input Video Signal: 3.3V
  • Input DDC Signal: 5Vp-p (TTL)
  • Maximum Signal Link Range: 230ft (70m)
  • Video Formats Supported: High-speed HDMI, HDCP 2.2
  • Audio Formats Supported: LPCM, DTS HD, DTS Audio, Dolby Digital 5.1CH
  • Output Video: HDMI
  • Resolutions Supported: 4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i, 1680x1050, 1680x1050, 1600x900, 1366x768, 1360x768, 1280x960, 1280x800, 1280x720, 1024x768, 800x600
  • Range (Cat6/6A/7): Up to 230ft (70m)
  • Video Input Connector: HDMI Type A 19-pin female
  • Maximum Input Cable Length: 26ft (8m) AWG24
  • Video Output Connector: HDMI Type A 19-pin female
  • Maximum Output Cable Length: 26ft (8m) AWG24
  • Cat6 Wiring Standard: T-568B
  • Operating Voltage: 5~12 VDC
  • Power Supply: 5VDC@1A
  • ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
  • Current Draw: Transmitter & Receiver: <4W
  • Operating Humidity: 0 to 90%
  • Operating Temperature: -4° to 140° F (-20° to 60° C)

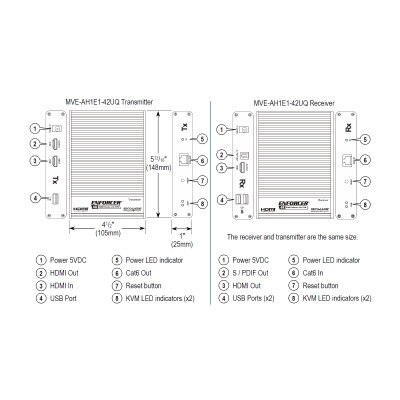

  • Dimensions: 5-13/16 x 4-1/2 x 1 inches (148x105x25 mm)
  • Weight: 9.2-oz (260g)
  • Credentials: FCC, CE, RoHS
  • Warranty: 2 Years
