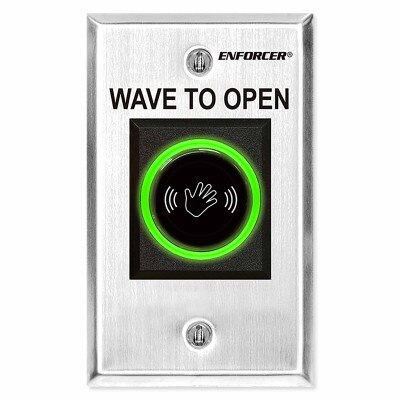

Seco-Larm Enforcer No Touch Request-to-Exit Sensor
Product Description
The Enforcer "No Touch" Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
- No Touch – just wave a hand in front of sensor.
- Sensing range up to 4" (10cm).
- Reliable IR technology senses motion.
- No touch reduces the risk of cross-contamination.
- Stainless steel or white plastic single gang plate.
- 3A relay, triggers min. 0.5 sec. or as long as hand is near the sensor.
- LED illuminated sensor area for easy identification.
- LED changes color to show the relay is triggered.
- Quick-connect screwless terminal block.
Tech Specs
- Power: 40mA at 12VDC
- Relay Type: Form-C dry contact, 3A at 12VDC
- Response Time: 10mS
- Output Time: 0.5 seconds or as long as unit is triggered
- Range: Up to 4 inches (10cm)
- Temperature Range: -4 to 131° F (-20 to 55° C)
- Weight: 3 ounces (85g)

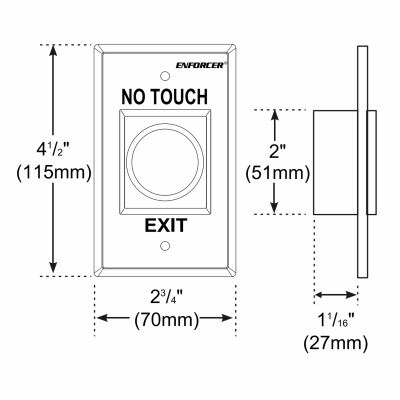

- Dimensions: 4-1/2 x 2-3/4 x 1-5/16 inches (115 x 70 x 33.5mm)
