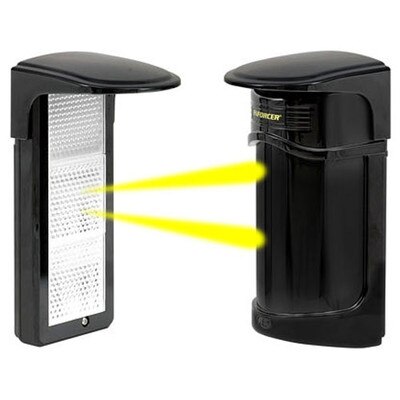

Seco-Larm Enforcer Large Reflective Beam Sensor, 50'
Product Description
- Up to 50ft (15m) sensing range.
- Large sensor with patented design and large reflector for a large sensing area and easier alignment.
- Reflective beam provides reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforces beam strength and provides excellent immunity to false alarms due to rain, snow, mist, etc.
- Response time adjustable from 50~700 ms for nearly all situations.
- NO/NC Alarm output.
- 12~250 VAC/VDC Operation.
- Weatherproof, sunlight-filtering case for indoor and outdoor use.
- Includes large reflector, hoods for sensor and reflector, and mounting hardware
Applications:
- For garage or overhead doors, outdoor gates.
- Industrial automation: detect objects on manufacturing line.
In The Box:
- 1 x Sensor
- 1 x Reflector
- 2 x Hoods
- 2 x Mounting plates
- 2 x Mounting brackets
- 2 x Pole mounting brackets
- 1 x L-Shaped mounting bracket
- 4 x Mounting screws
- 4 x Long screws
- 6 x Short screws
- 1 x Rubber gasket
Tech Specs
- Part Number: E-931-S50RRLQ
- Type: Reflective photoelectric beam sensor with large reflector
- Sensing Range: Up to 50 feet (15m)
- Operating Voltage: 12~250VAC/VDC
- Current Draw: 100mA
- Response Time: 50~700 ms (adjustable)
- Light Source: IR LED
- LEDs:
- Red: No beam signal, triggered
- Yellow: Poor beam signal
- Green: Connected to power
- Alarm Output: NO/NC relay, 0.5A at 120VAC, min. 1s
- Tamper Output: NC switch, 0.5A at 30VAC
- Alignment Angle: Horizontal: ±90 degrees; Vertical: ±15 degrees
- Enclosure: IP55
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Dimensions*: 3-3/16 x 7-3/16 x 3-9/16 inches (81 x 182 x 91 mm)
- Weight:
- Sensor: 11.6 ounces (329g) with hood
- Reflector: 5.9 ounces (167g) with hood
- Approvals: ISO 9001, CE, RoHS
- Warranty: 1 Year
