Seco-Larm Enforcer Low-Noise CCTV Power Supply

$121.93
SKU: SEPCL1620PQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

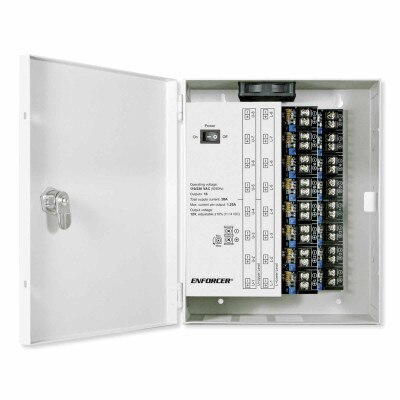

The Seco-Larm ENFORCER Low-Noise CCTV Power Supply comes with outputs that are independently grounded and individually isolated and fused (2APTC) to help reduce noise in CCTV applications due to inadequate wiring. This CCTV power supply also features a built-in circuit for protection against overheating, a durable steel case with cover and cam lock, and a 110/220 VAC input with 6KV surge protection.

  • Reduces noise for all CCTV applications where filtered power is needed, such as 4K (8MP) HD CCTV cameras, nonPoE IP cameras, and analog cameras

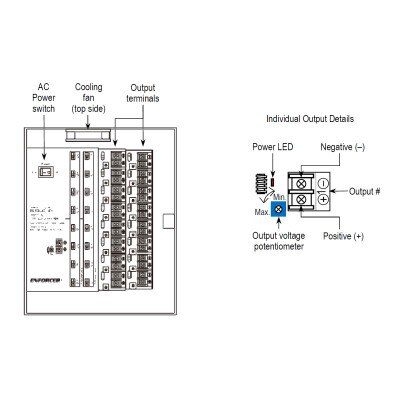

  • Voltage of each output is individually adjustable to compensate for voltage drop

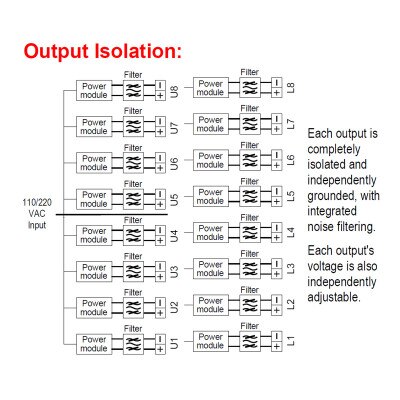

  • Outputs independently grounded with integrated noise filter for better noise reduction
  • Outputs individually isolated and individually fused (2A PTC)
  • Status LEDs for individual outputs
  • 110/220 VAC input with 6kV surge protection
  • Heavy-duty steel case with cover and cam lock
  • Built-in short circuit and overheat protection

Why You Would Use This Product:

The Seco-Larm ENFORCER Low-Noise CCTV Power Supply will come in handy in instances where filtered power is needed when using various surveillance cameras like 4K (8MP) HD CCTV cameras, nonPoE IP cameras, and analog cameras. This CCTV power supply is specifically designed to reduce noise caused by inadequate wiring, which means your security footage will be clearer to look at when seeing what's happening on your property.

In The Box:

  • Power Supply
  • Power Cord
  • 2 x Cover Locking Screws
  • 2 x Cam Lock Keys
  • 2 x Rubber Grommets
  • Manual

Notes:

  • Always test output voltage before connecting devices.
  • Indoor use only. Do not mount the unit where it may be exposed to weather or high humidity.
  • For professional installation only.

Tech Specs

  • Part Number: PC-L1620-PQ
  • Outputs: 16
  • Total Supply Current: 20A
  • Max. Current Per Output: 1.25A
  • Output Fuse: 2A PTC (Per-channel)
  • Output Voltage: 12VDC ±5%
  • Efficiency: 80%
  • LED Indicators: Individual per output, red indicates powered
  • Operating Humidity: 95% non-condensing
  • Operating Temperature: 32°~104° F (0°~40° C)

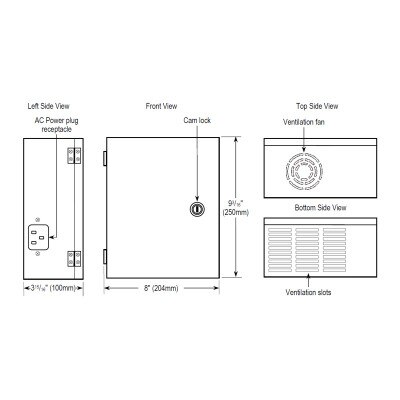

  • Dimensions: 8"x 9-3/16"x 3-15/16" (204 x 250 x 100 mm)
  • Weight: 6-lb (2.71kg)
  • Certifications: FCC, CE, RoHS
  • Warranty: 2 Year
