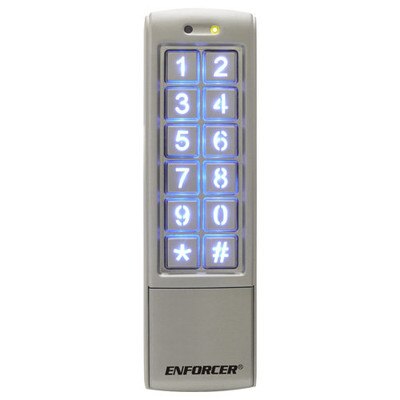

Seco-Larm Enforcer Access Control Keypad, Mullion-Style with Proximity Reader
Product Description
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
- 2 Form C relay outputs.
- Each relay has programmable output time from 1~99 seconds or toggle.
- Output #2 can be programmed for use with a doorbell.
- 2 Egress inputs and 1 door sensor input.
- Backlit keys for easy nighttime use.
- 2 Multi-colored status LEDs
- All features are programmed directly from the keypad – no need for an external programmer.
- EEPROM protects programmed information in case of power loss.
- Optical tamper sensor for added security.
- Circuitry is potted with epoxy for outdoor use.
- Weatherproof (IP65).
- Rugged aluminum construction.
- Built-in 125kHz proximity reader.
- 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
- Output #2 may have either a card or a code programmed for each user.
Tech Specs
- Operating voltage: 12~15 VDC
- Current draw:
- Standby: 40mA@12VDC
- Active: 70mA@12VDC
- Relay outputs:
- Output #1: 1A@30VDC, Form C, NO/NC/COM
- Output #2: 1A@30VDC, Form C, NO/NC/COM
- Egress inputs:
- Input #1: N.O. ground
- Input #2: N.O. ground
- Door sensor input: N.C. ground
- Tamper sensor: Optical
- Operating temperature: -4°~122° F (-20°~50° C)
- Keypad LED life: 60,000 hours (over 6.8 years)
- Weight: 11-oz (312g)
- Proximity reader frequency: 125kHz
- Proximity reader distance: 115/16" (5cm)
