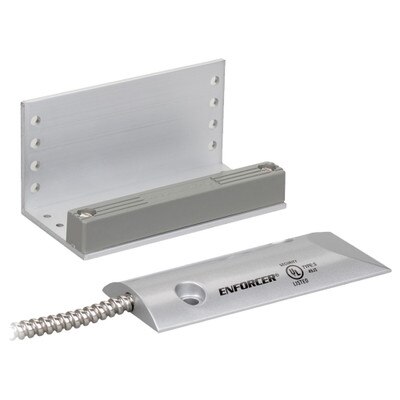

Seco-Larm Enforcer Overhead Door Magnetic Contact, Open/Closed Loop (Open Box)
Product Description
- NO/NC contact
- Switch contained in low-profile cast aluminum housing anchored directly to the floor, and curved so heavy vehicles can cross over without damaging it.
- Magnet in gray ABS case mounted on L-shaped bracket
- 24-inch wire leads enclosed in stainless-steel cable
Tech Specs
- Part Number: SM-226L-3Q
- UPC: 676544006473
- Circuit type: Closed loop Open/closed loop
- Operation gap: 2-3/4" (70mm)
- Material:
- Switch: Heavy-duty cast-aluminum case
- Terminal: 24" (61cm) armored leads
- Magnet: ABS plastic on L-bracket
- Contacts: Deactivated rhodium on gold under-plating
- Contact rating:
- 0.02A@100VDC (max)
- 0.2A@10VDC (max)
- 3W (max)
- Temperature: -15~160F (-25~70C)
- Switch cycles: 50 Million (0.1mA@5VDC)
- Switch dimensions: 4-11/32" x 1-3/4" x 2-7/64" inches (110 x 44 x 11 mm)
- Magnet dimensions: 3-15/16" x 2" x 2" inches (100 x 51 x 51 mm)
- Magnet type: Alnico 5
- Warranty: 1-Year
