Seco-Larm Enforcer Overhead Door Magnetic Contact, Closed Loop
Product Description

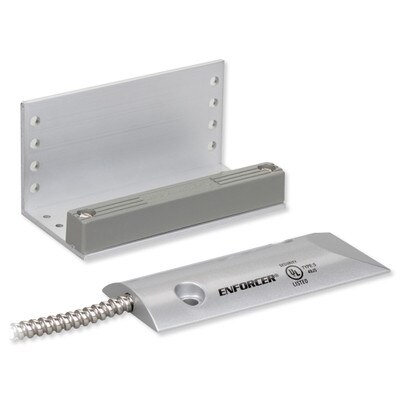

Overhead door and screen magnetic contact.
- Switch contained in low-profile cast aluminum housing anchored directly to the floor and curved, so heavy vehicles can cross over without damaging it.
- Magnet in gray ABS case mounted on L-shaped bracket.
- 24" (61cm) wire leads enclosed in armored cable.
- IP66 – Epoxy sealed switch for weatherproof installation.
- Adjustable to fit most door-channel widths
- For closed-loop circuits.
- Lifetime limited warranty
Tech Specs
- Part Number: SM-226LQ
- IP Rating IP66 - Epoxy sealed
- Operating Voltage: 12~24 VDC
- Loop Type: Closed-loop
- Electrical Configuration: NO (SPDT)
- Operation Gap: 2-3/4", (70mm)
- Material Magnet: ABS plastic on L-bracket
- Material Switch: Heavy-duty cast-aluminum case
- Material Terminals: 24" (61cm) armored leads
- Contacts: Deactivated rhodium on gold under-plating
- Contact Rating: 0.2A@10VDC (max), 3W (max)
- Operating Temperature: -15 to 160 degrees F (-25 to 70 degrees C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Switch Dimensions: 4-5/16 x 1-3/4 x 7/16 inches (110x44x11mm)
- Magnet Dimensions: 3-15/16 x 2 x 2 inches (100x51x51mm)
- Magnet Type: Alnico 5
- Approvals: UL, RoHS
- Warranty: Lifetime Limited
