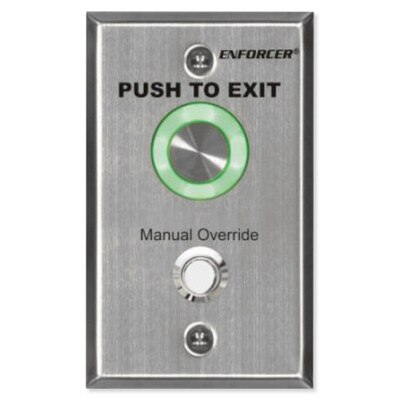

Seco-Larm Enforcer Piezoelectric Request-To-Exit Single-Gang Plate, Manual Override

• Piezoelectric request-to-exit plates for indoor or outdoor use (IP65 rated)
• No moving parts for heavy duty use
• LED ring around button changes from green to red or red to green when the button is pressed
• Timed or toggle output
• Includes separate manual override button for use in case of a power failure to the pushbutton
• Relay rated 2A@30VDC with two individually programmable outputs (NO/NC)

In The Box:

• Piezoelectric Push Button
• (2) Wires for Manual Override
• (2) Mounting Screws
• Manual

NOTES: There is only one relay. Wiring the button to either output will allow the other output to trigger simultaneously. Do not connect the manual override button to more than one output. When wiring for either N.O. or N.C., be sure to also set the Relay Output Mode to N.O. If Relay Output Mode and override button wiring do not match, the product may not function as expected.
