Seco-Larm Enforcer Polarized Reflective Beam Sensor, 33 Ft.
Product Description

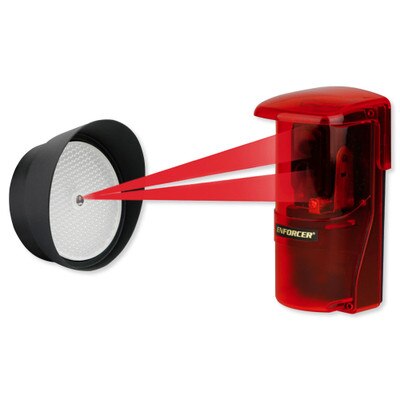

The 33ft Polarized Reflective Photoelectric IR Beam Sensor provides reliable detection of shiny objects that could be missed by a non-polarized sensor.
- Triggers only when correctly reflected light is detected
- Weatherproof (IP55)
- Anti-condensation housing
- 12-30V DC/AC 60Hz, 100mA
- Up to 33 feet (10m) sensing range
- Round reflector, Diameter: 3-1/4" (82mm)
- Form C relay: 500mA@30VAC/VDC
- Beam status LED
- Compact size: 4-13/16"x2-3/8"x2-7/16" (122x60x62mm)
- N.C. Tamper switch: 500mA@30VAC/VDC
- Monitored Outputs:
- N.C.
- 10kΩ Resistor
In The Box:
- Sensor
- Reflector
- Mounting Bracket
- Sensor Hood
- Reflector Hood
- 4 x Cover Screws
- 2 x Mounting Screws
- Reflector Mounting Screw
- Rubber Ring
- Cable Connector
- Manual
- Removable Terminal Block
- 10kΩ Resistor
NOTE: Requires a security system or alarm device to alert you when activated.
Tech Specs
- Part Number: E-931-S33PRGQ
- Sensing Range: 33ft (10m)
- Operating Voltage: 12-30V DC/AC 60Hz, 100mA
- Current Draw:
- Standby: 55mA@12VDC
- Active: 40mA@12VDC
- Response Time: 10ms (max.)
- Light Source: IR LED/Wavelength 740nm
- LED:
- Solid Green: Good beam signal, properly aligned
- Alternating Flash: Poor beam signal
- Solid Red: No beam signal, triggered
- Trigger Output: SPDT Relay output (NO/NC/COM)
- Switching Capacity: 0.5A at 30VAC/VDC
- Tamper Switch: N.C., 500mA at 30VAC/VDC
- IP Rating: IP55
- Operating Temperature: -4°F to 131° F (-20° to 55° C)
- Certifications: CE, RoHS
- Warranty: 1 Year
