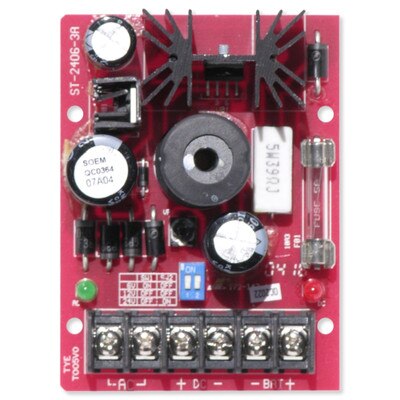

Seco-Larm Enforcer Power Supply Charger, 2.5A Continuous, 3A Peak

$29.73
SKU: SEST24063AQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

SECO-LARM's ST-series of power supplies/chargers ensure that alarm systems and access control systems have enough power to do their job. Protected by fused outputs, input polarity protection diodes, and backup battery polarity reverse protection, these power supplies/chargers can be used to maximize the security and efficiency of nearly any alarm or access control installation.

NOTE: Does not include rechargeable back-up battery.

Features:

  • Switch selectable DC voltage output
  • Regulated and filtered output voltage
  • Short circuit protection
  • Thermal protection and compensation
  • Built-in backup battery charger
  • Switches to backup battery automatically in case of power loss
  • Fused protection for battery charger
  • 2 LEDs to indicate AC power input and DC power output status
  • Compatible with lead acid or gel-type rechargeable battery
  • Reverse polarity protected
  • Low operating temperature
  • Battery leads and foam tape included
  • Compact design

In The Box:

  • Power Supply/Charger
  • 2 x Wires for backup battery charger
  • 2 x Acrylic foam tape for PCB mount
  • Manual

Tech Specs

  • Part Number: ST-2406-3AQ
  • Operating Voltage: 6, 12, 24 VDC
  • Status LEDs: AC Input: Green, DC Output Red Red/Blue (Blue indicates 24V)
  • Current Draw:
    • Continuous: 2.5A
    • Peak: 3.0A
  • Output Current (Maximum Charge): 6V = 200mA, 12V = 400mA, 24V = 700mA
  • Master Fuse: 5 Amp
  • Low Battery Cutoff: When battery voltage is less than 20 percent of set output voltage
  • Operating Temperature: -4° to 149°F (-20° to 65°C)
  • Dimensions: 3-3/8 x 2-7/8 x 1-5/16 inches (81 x 73 x 33 mm)
  • Approvals: CE, RoHS
  • Warranty: 1 Year

Product Docs
