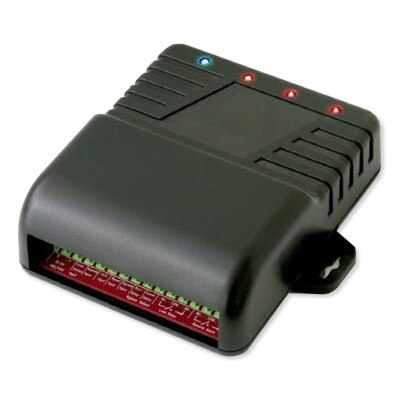

Seco-Larm Enforcer Programmable Delayed Egress Timer Module, 12~24 VDC Operation

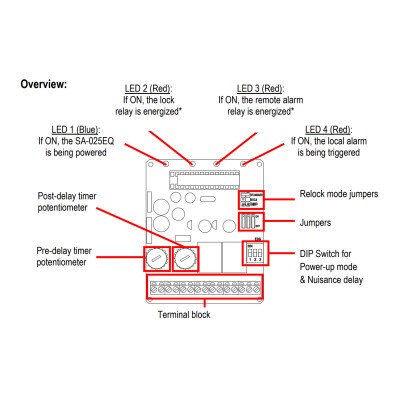

The Seco-Larm Programmable Delayed Egress Timer Module can operate in three different relock modes: standard mode, BOCA mode, and timed mode. In order to switch between these modes, locate the relock mode jumper on the circuit board and move the jumper to the appropriate pins.

Standard Mode (Default):

Once the lock has been released, it will remain released until manually relocked by a reset device connected to the Reset Input.

BOCA Mode:

This mode is for use with BOCA (Building Officials Code Administrators) regulations. Once the lock is released, the door will remain unlocked until the door is closed. Once closed, the door will still remain unlocked for 30 seconds. If the door is opened at any time during the 30 seconds, the timer will reset. The 30-second timer will restart once the door is closed.

Timed Mode:

Once the lock is released, it will remain released for the duration of the set post-delay timer.

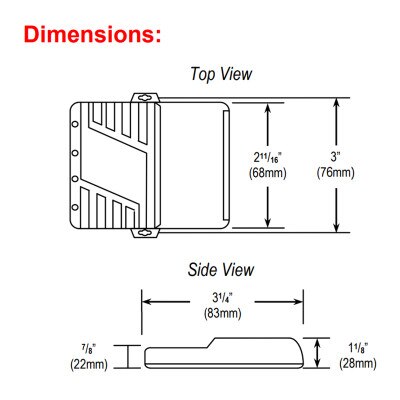

Use a paper clip or a similar object to push one of the two tabs on the back of the unit inward. To remove the housing cover from the SA-025EQ. If mounting is necessary, secure two screws (not included) through the two screw holes located on the side of the unit to a mounting surface.

• 3 Relock modes to meet different installation requirements: Manual, BOCA (Building Officials Code Administrators), and Timed (1 to 60 seconds)
• Programmable nuisance delay timer (0~3 seconds)
• Adjustable pre-delay timer (1~30 seconds)
• Adjustable post-delay timer (1~60 seconds)
• Selectable manual or automatic relocking after power loss
• Lock relay output (Form C, 10A@24VDC)
• Remote alarm relay output (Form C, 10A@24VDC)
• Local alarm output (transistor ground, 500mA@12VDC)
• Door status input
• Status LEDs show relay status
• Bypass input immediately releases locks
• Free egress input allows easy egress during the delay

NOTE: BOCA mode requires a door-mounted N.C. magnetic contact connected to the lock status input in order to operate correctly.
