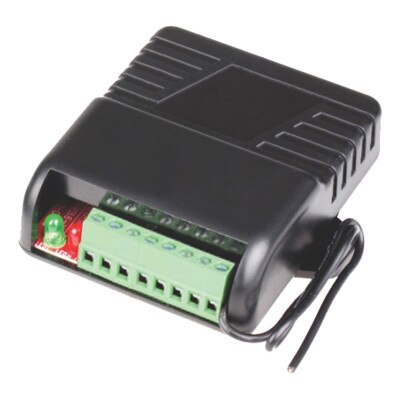

Seco-Larm Enforcer RF Receiver, 2-Channel, 433.92MHz
Product Description
The Seco-Larm Enforcer RF Receiver, 2-Channel, 433.92MHz meets the growing demand for receivers with multiple, independently-controlled output functions. This RF receiver is compatible with both code hopping and fixed code transmitters and can be used to remotely control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.
- Five programmable relay output modes:
- 4-Second momentary
- 1-Second momentary
- Toggle (ON/OFF)
- Validity
- Latch
- 11~24 VAC/VDC Operation
- Range: Up to 500ft (150m)
- Controls garage doors, gates, house lights, alarm panels or other devices via remote

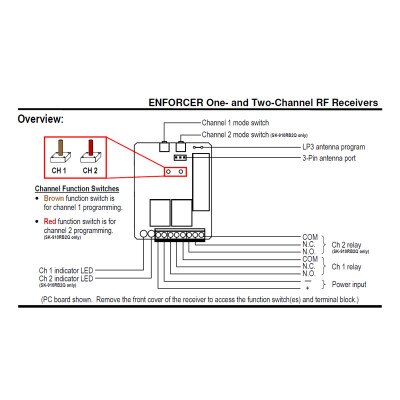

- LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
- Pushbutton programming, no need to cut jumpers
- Up to 15 transmitter button codes can be learned
In The Box:
- 2-Channel RF Receiver
- Manual
Note: Optionally used in conjunction with the Seco-Larm Enforcer Extended Range RF Antenna (SK-91ERSD) for extended range by 1,000 feet.
Tech Specs
- Part Number: SK-910RB2-4Q
- UPC: 676544019480
- Operating Frequency: 433.92MHz
- Memory Capacity: 15 transmitter button codes per channel
- Operating Voltage: 11~24 VAC/VDC
- Operating Current:
- Standby 8mA@12VDC
- Active 30mA@12VDC per channel
- Relay Contact Rating: Form C 10A@24VDC or 120VAC per channel

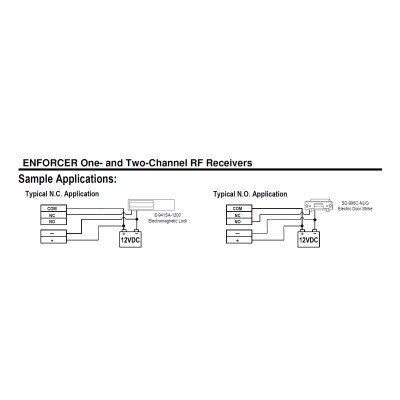

- Connectors: Screw terminals, +, -, with NO/NC/COM per channel
- Operating Temperature: -40°~167° F (-40°~75° C)
- Dimensions: 3-1/8 x 2- 9/16 x 1 inches (80 x 65 x 25 mm)
- Credentials: IC, FCC
- Warranty: 1 Year
