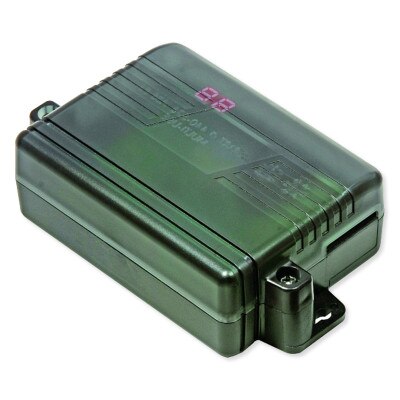

Seco-Larm Enforcer RF Receiver, 917MHz
Product Description
The Seco-Larm Enforcer RF Receiver, 917MHz works with the Seco-Larm Enforcer Pendant RF Transmitter, 917MHz and uses digital modulation for improved immunity to interference and better signal penetration in environments with heavy obstructions. It also has a longer range of up to 1,800ft (550m) line of sight and features a PCB antenna, 5 individually programmable output modes, up to 99 button codes per channel, and an LED to indicate RF reception and programming functions.
- 917MHz Frequency
- Wide voltage range, 10~24 VAC or 9~48 VDC, for more applications
- Over 2.028x1031 (20.28 nonillion) possible codes to thwart code crackers and potential for duplicate codes

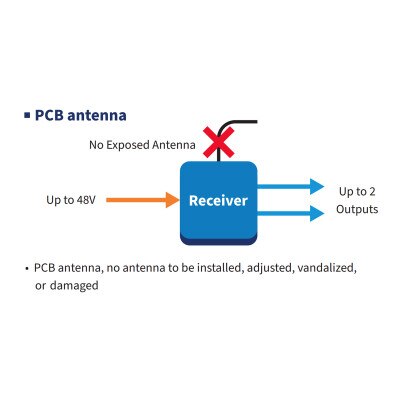

- PCB antenna — no external antenna to be installed, adjusted, vandalized, or damaged
- Available with 1 or 2 channels to control 1 or 2 devices
- Programming by the switch, no need to cut jumpers
- LED Indicates RF reception and programming functions
- RF Signal strength/site survey test mode to find the optimal installation location
- Compatible with all HL-series transmitters of the same frequency
In The Box:
- Transmitter with Keychain
- Battery (CR2032, included)
Tech Specs
- Part Number:
- HL-951R1-SQ: 1 Channel
- HL-951R2-SQ: 2 Channels
- UPC:
- HL-951R1-SQ (1 Channel): 676544021209
- HL-951R2-SQ (2 Channels): 676544021216
- RF Frequency: 917MHz
- Memory Capacity: 99 transmitter button codes per channel
- Operating Voltage: 10~24 VAC, 9~48 VDC
- Operating Current:
- Standby: 8mA@12VDC / 5mA@24VDC / 3mA@48VDC (typical)
- Active: 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel
- Relay Output:
- Type: Independent, sequence, access control
- Modes: 1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity)
- Relay Contacts: Form C 10A@14VDC
- Operating Range: Up to 1,800 feet (depending on installation and operating environment
- Digital Display: 2-Digit, 7-segment LED

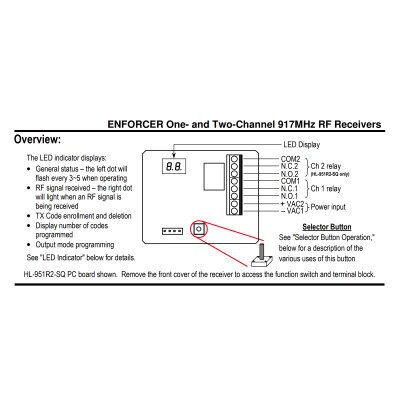

- Connectors: Screw terminals, +, -, with NO/NC/COM per relay
- Other Features:
- Programming by the switch, no need to cut jumpers
- LED Indicates RF reception and programming functions
- RF Signal strength/site survey test mode to find the optimal installation location
- Operating Temperature: -40°~167° F (-40°~75° C)
- Dimensions: 3-15/16 x 2-1/2 x1-3/1 inches (100 x 63 x 30 mm)
- Credentials: FCC, CE
- Warranty: 1 Year
