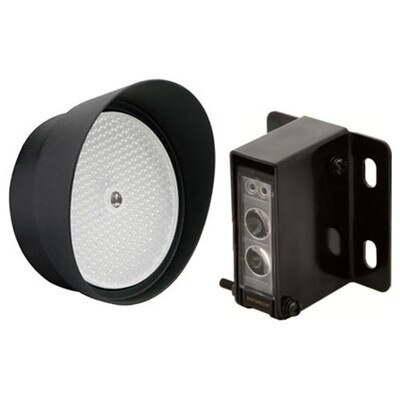

Seco-Larm Enforcer Reflective Beam Sensor with Round Reflector, 45'
Product Description
- Weatherproof (IP 66) construction for indoor/outdoor usage.
- Includes 3-inch round reflector and hood.
- Pre-wired 6-foot (2m) cord.
- Bracket and mounting hardware included. Includes two sensor mounting brackets.
- Adjustable sensing distance and response time: 5 to 100ms.
Applications:
- Compact size.
- Sensor for garage doors, outdoor gates or overhead doors.
- Sensor for industrial automation to detect objects on manufacturing line.
- Entry detection for store fronts.
- Assist in measuring parking distance.
- Alarm sensor
Tech Specs
- Part Number: E-931-S45RRQ
- UPC: 676544013242
- Finish: Black
- Type: NIR Retro-Reflective
- Sensing Range: 0.5 to 45 feet (0.1 to 14m)
- Supply Voltage: 12 to250 VAC/VDC
- Current Drain:
- 12VDC: Standby: 20mA, Active 40mA
- 24VDC: Standby 10mA, Active 20mA
- Response Time: 5 to 100ms adjustable
- Light Source: IR LED
- LEDs: Yellow LED (alignment), Red LED (trigger)
- Output: SPDT Relay Output (NO/NC/COM)
- Switching Capacity: 3A at 120VAC/3A at 30VDC
- Enclosure: IP66 Waterproof
- Ambient Temp: -4 to 131 degrees F (-20 to 55 degrees C)
- Warranty: 1 Year
