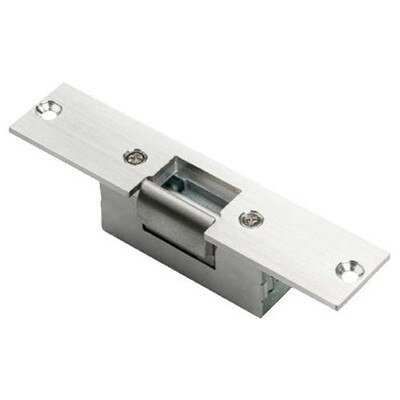

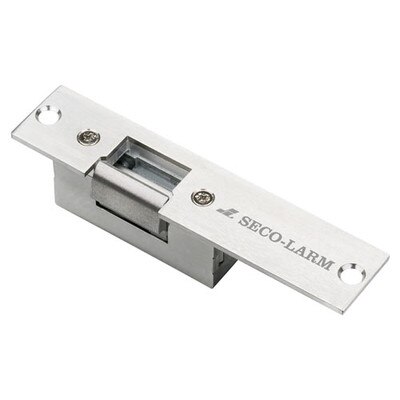

Seco-Larm Enforcer Reversible Electric Door Strike
Product Description
The SECO-LARM Electric Strikes are the ideal way to convert cylindrical lock sets into an electronic access-controlled locking system. The strikes come in two varieties: asymmetric and symmetric. Both models come with a reversible faceplate for right-hand or left-hand doors and have a fail-secure operation.
- 8~16VAC / 12VDC operating voltage.
- For use on wood doors.
- Can be used with virtually any cylindrical-door locking system.
- Fail-secure operation.
- US26D Chrome faceplate.
- Miniature lock body for easier installation.
- Corrosion-resistant case and moving parts.
- 1,000-lb (453kg) jaw strength.
- Tested to 500,000 cycles.
- Reversible for right- or left-hand doors.
In The Box:
- 1 x Door strike
- 2 x Mounting screws
- 1 x Manual
Tech Specs
- Part Number: SD-994A-A1AQ / SD-994A-A1SQ
- Operation: Fail secure
- Operating Voltage: 8~16 VAC/12VDC
- Current Draw:
- 16VAC: 800mA
- 12VDC: 750mA
- Jaw Strength: 1,000 pounds (453kg)
- Faceplate Size: 5-7/8 x 1-1/4 x 1/8 inches (150 x 32 x 3.2 mm)
- Keeper Depth: 21/32 inch (16.8mm)
- Latch Depth: 3/4 inch (19mm)
- Strike Depth: 1-1/2 inches (38mm)
- Operating Temperature: 14° to 113°F (-10° to 45°C)
- Weight: 10.3 ounces (292g)
- Warranty: 1 Year
