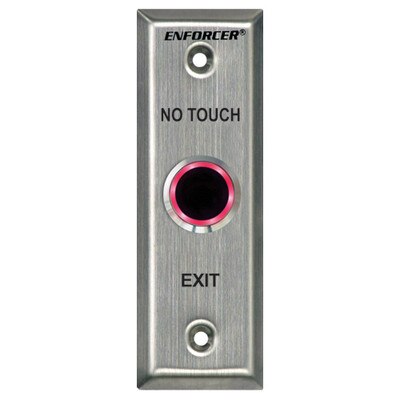

Seco-Larm Enforcer Slimline No Touch Request-to-Exit Plate, Outdoor
Product Description
The Enforcer "No Touch" Request-To-Exit Plate uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch, this plate is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. Weatherproof for outdoor applications.
- Weather-resistant (IP65) for outdoor use
- Clean and simple no-touch operation reduces the risk of cross-contamination
- Adjustable sensor range up to 4" (10cm)
- Stainless-steel plate, available in slimline or single-gang
- 1A relay, adjustable trigger duration 0.5~20 seconds
- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
Tech Specs
- Operating Voltage: 12~24 VDC
- Current Draw:
- Standby: 16mA at 12VDC / 25mA at 24VDC
- Triggered: 20mA at 12VDC / 32mA at 24VDC
- Relay Type: Form C dry contact, 1A at 30VDC
- Response Time: 10mS
- LEDs
- Standby: Red
- Triggered: Green
- Output Time: 0.5 to 20 seconds, toggle
- Range: 2 to 7 inches (5 to 18cm)
- IP rating: IP65
- Operating Temperature: -4 to 131 degrees F (-20 to 55 degrees C)
- Weight: 61 grams
- Dimensions: 4-1/2 x 1-1/2 x 1-1/2 inches (115 x 39 x 39mm)
