Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer (Open Box)

$32.86 $42.47
SKU: SESD7103GCPTQ_OB

1 available at this price.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

  • Built-in timer (1 to 180 sec.).
  • Buzzer output for audio status.

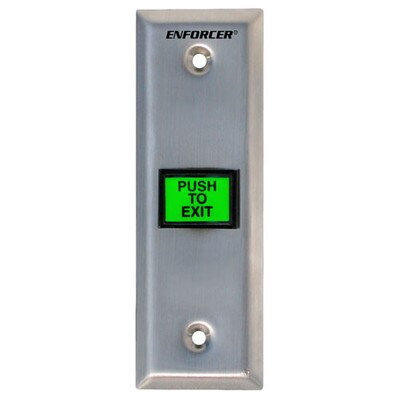

  • Lighted push button says "PUSH TO EXIT."
  • Can be easily changed in the field to say "PRESIONE PARA SALIR."
  • DPST push button rated 3A at 24VDC max.
  • Long-life green LED 12/24 VAC/VDC (Approx. 35,000 hours).
  • Rubber-sealed switch to prevent liquid penetration.

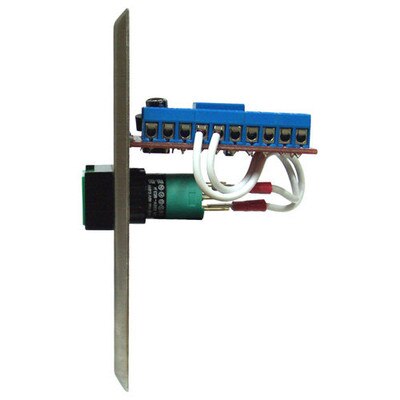

  • Includes six colored, 12-inch wire leads with easy-to-attach spade lugs for fast installation.
  • Includes stainless-steel slimline plate.
  • CE and UL approved switch.

Tech Specs

  • Part Number: SD-7103GC-PTQ
  • UPC: 676544013198
  • Wire Leads: 12-inch, AWG 18, color-coded
  • Mechanical Lifetime: 2,000,000 operations
  • Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)
  • Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDC
  • Button Dimensions: 15/16 x 11/16 inches
  • LED: 12/24 VAC/VDC, approx. 35,000-hour life
  • Resistor: 680 ohms, 0.5W
  • Plug-In Terminals: 6
  • Approvals: CE and UL
  • Warranty: 1 Year
