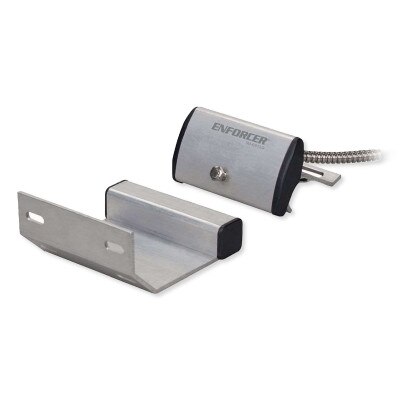

Seco-Larm Enforcer Track-Mount Overhead Door Magnetic Contact, NO/NC
Product Description
The Seco-Larm Enforcer Track-Mount Overhead Door Magnetic Contact, NO/NC mounts on a sliding track door to monitor and report the door's open/close status. Its adjustable design allows it to be mounted onto door installation with a gap between 2 to 3 inches wide. Doors with larger or smaller gaps require an L mounting bracket, sold separately. Durable construction protects the internal components and provides a long lasting performance.
Features:
- Used for overhead doors in both industrial and residential situations where a wide gap is present
- Adjustable to fit most door-channel widths between 2 to 3 inch gaps
- Rugged aluminum housing, 36" (91cm) Wire leads enclosed in armored cable
- and iridium-plated contacts allow for longer expected product lifespan and reliable performance in most environments
- IP65 Weatherproof rating
- Contact Type: SPDT, For open/closed loop circuits
- Optional L-bracket (SM-8201-LWQ) available for door channels 2-1/2~4" (62x102mm), dimensions: 3"x2"x1-1/4" (76x51x32 mm)
In The Box:
- 1 x Contact Switch
- 1 x Magnet with Bracket
- 1 x Contact Bracket
- 1 x Manual
NOTE: L-Bracket for door gap channels 2.5 to 4 inches wide sold separately (SM-8201-LWQ).
Tech Specs
- Part Number: SM-4201-L3Q
- Loop Type: Open/Closed Loop
- Operation Gap: 3" (76mm)
- Case Material: Aluminum
- Terminal Material: 36" (91cm) armored leads
- Contacts: Iridium-plated
- Contact Rating: 1.0A@10VDC (max), 10W (max)
- Operating Temperature: -15 to 160°F (-25 to 70°C)
- Switch Cycles: 50 Million (0.1mA@5VDC)

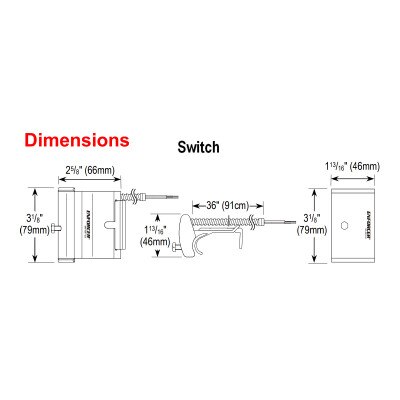

- Switch Dimensions: 3-7/64" x 2-19/32" x 1-13/16" (79 x 66 x 46 mm)
- Magnet Dimensions: 3-7/32" x 3-17/32" x 1-3/4" (82 x 90 x 44 mm)
- Magnet Type: Ferrite
- IP Rating: Weatherproof IP65
- Warranty: Limited Lifetime
