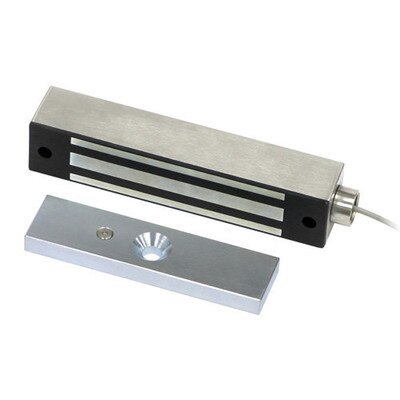

Seco-Larm Enforcer Gate Maglock, 600 Lbs.
Product Description
- For outdoor sliding and swinging electric gates.
- Lock is water and vandal resistant.
- Lock has attractive stainless-steel finish.
- Maintenance-free, factory-sealed design.
- Holding force – 600-lb (272kg).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- MOV surge protection.
- UL and ULC listed.
- CE listed.
- RoHS compliant.
Tech Specs
- Holding force: 600-lb (272kg)
- Operating voltage: 12 or 24 VDC ±10%
- Current draw: 500mA@12VDC, 250mA@24VDC
- Temperature: 14º~131º F (-10º~55º C)
- Magnet size: 8"x2-11/16"x1-9/16" (203x42x39 mm)
- Armature size: 6-1/4"x1-3/8"x5/8" (159x41x16 mm)
- Junction box: N/A
- Overall bracket (with maglock installed): N/A
- Cable length (approx.): 6-1/2"
- Certification: UL, ULC, CE
- RoHS compliance: Yes
