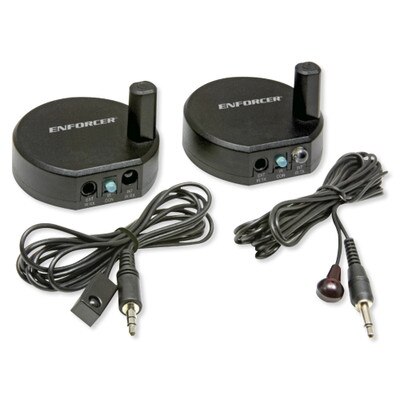

Seco-Larm Enforcer Wireless IR Repeater Kit
Product Description
The Seco-Larm Enforcer Wireless IR Repeater Kit extends the transmission range of IR signals from your remote control to remotely operate AV and compatible devices kept in a separate location or in a closed cabinet. The Wireless IR Repeater Kit allows for frequency hopping wireless transmission of IR signals, minimizing RF interference. The wide band IR receiver is capable of receiving IR signals from many types of remotes.
Features:
- Allows for wireless IR transmission up to 656ft (200m) line of sight
- Wirelessly transmits IR signals using 915MHz RF
- Frequency hopping technology minimizes RF interference and secures connection
- Compatible with 20~60 kHz IR systems
- IR Confirmation LED
- 5VDC Power jack (2x AC adapters included)
- Compact size for easy mounting near audio/video equipment
- Includes one 10ft (3m) wired IR emitter and one 5ft (1.5m) wired IR receiver
In The Box:
- 1x Transmitter
- 1x Receiver
- 1x Wired IR receiver
- 1x Wired IR emitter
- 2x 5VDC Power adapters
- 1x Mounting tape for wired IR receiver
- 2x Mounting tape for wired IR emitter
- 1x Manual
Tech Specs
- Part Number: MVE-AN1W1-01Q
- LED Indicators: IR Confirmation
- Operating Voltage: 5 VDC
- IR Receiver Frequency: ±35° Off Axis
- IR Emitter Frequency: 20 to 60 kHz
- IR Emitter Angle: ±11° Off Axis
- Connector Type:
- Power: 1.3mm Coaxial center-pin-positive
- Wired IR Receiver: 1/8 in (3.5mm) TRS Mini-plug
- Wired IR Emitter: 1/8 in (3.5mm) Mono mini-plug
- Maximum Extended Range: 656 ft (200m)
- Operating Humidity: 10~90%
- Operating Temperature: -4 to 140° F (-20° to 60° C)
- Power Supply: 5VDC/500mA
- Dimensions:
- Transmitter/Receiver: 1-3/4 in x 1-3/4 in x 1-1/4 in (45 x 45 x 31 mm)
- Wired IR Receiver: 1-3/16 in x 1/4 in x 3/8 in (20 x 7 x 10 mm)
- Wired IR Emitter: 5/8 in x 3/8 in x 3/16 in (16 x 10 x 5 mm)
- Cable Length:
- Wired IR Receiver: 5 ft (1.5m)
- Wired IR Emitter: 10 ft (3m)
- RF Frequency: 915MHz
- Warranty: 2 Year Limited
