Seco-Larm Enforcer Magnetic Contact, 3/8" Rare-Earth Recessed, 1/2" Gap, NC
Product Description

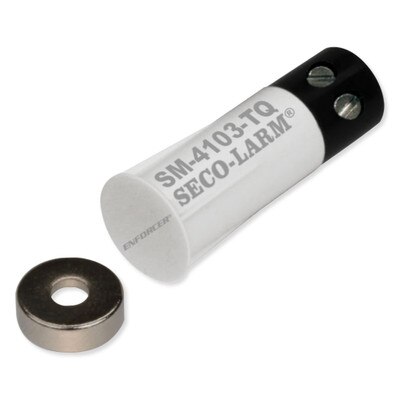

The Seco-Larm 3/8" Rare-Earth Recessed-Mount Magnetic Contact Switch secretly monitors the open/close status of a single door or window from within the frame.
- Used for protecting sliding doors and windows where space is limited
- Rare-earth magnet with nickel plating to protect against chipping and corrosion
- Gold-plated terminals for longer life and reliability
- High-impact ABS plastic
- Miniature size assures ease of concealment
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, ruthenium on gold under-plating, for extended operations
- 3/8" Press-fit with stubby 1" switch
- 1/2" (13mm) Gap
- White, with Screw Terminals
- Lifetime limited warranty
In The Box:
- Sensor
- Manual
Tech Specs
- Part Number: SM-4103-TQ/W
- Loop Type: Closed loop
- Electrical Configuration: N.O. (SPST)
- Operation Gap: 1/2" (13mm)
- Connectors: Gold-plated screw terminals
- Color: White
- Material:
- Case: High-impact ABS plastic
- Contacts: Ruthenium on gold underplating
- Contact Rating:
- 0.1A@100VDC (max.)
- 1.0A@10VDC (max.)
- 10W (max.)
- Operating Temperature: -15° to 160° F (-25° to 70° C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Switch Dimensions: 15/16" L x 7/16" Dia (24 L x 11 Dia mm)
- Magnet: Rare-earth neodymium alloy
- Warranty: Lifetime Limited
