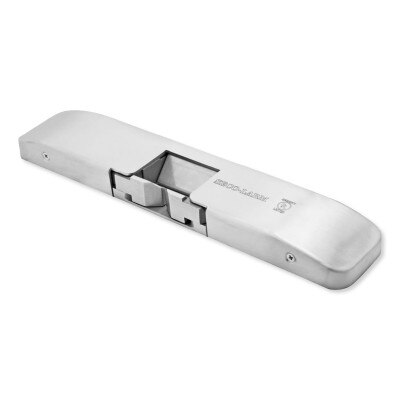

Seco-Larm Surface-Mount Electric Rim Strike, 1/2 Inch

The SECO-LARM Surface-Mount Electric Rim Strike is designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2" throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

• Electric rim door strike accommodates up to 1/2" Pullman latch
• Surface-mounts on metal or wood frames
• Reversible non-handed stainless steel design with horizontal adjustment
• Field-selectable for fail-safe or fail-secure operation
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• Static strength – 1,500-lb (6673N)
• Tested for 250,000 cycles (UL Tested)
• UL 294 and 1034 Listed
• Tamper-resistant
• Non-polarized connection
• 12/24 VDC Operating voltage
• Low current draw: 540mA@12VDC, 270mA@ 24VDC
• Spacers included: 1/16", 2x 1/8" (1.5mm, 3mm)
• For Indoor Use Only

In The Box:

• Rim Strike
• Blind Nut Kit
• Dead Latch Ramp Adapter
• Hex Wrench
• 12VDC Cable Connector
• 24VDC Cable Connector
• 2 x Blind Nuts
• 2 x Crimp Connectors
• 2 x Hex Socket Head Cap Screws
• 2 x Philips Flat Head Screws
• 1/16", 2x 1/8" (1.5mm, 3mm) Spacers
• Manual

NOTES: For Indoor use only. The Electric Rim Strike is intended to be used with UL Listed Exit Hardware. The Electric Rim Strike is designed to avoid impairing intended operations of existing emergency units or panic hardware mounted on the door.
