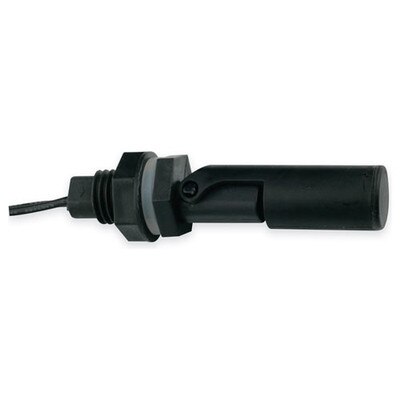

Sensaphone Float Level Switch Sensor
Product Description
The FGD-0222 float switch is a plastic side mounted float switch. It is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming.
- Versatile, economical, and compact.
- UL Listed internal reed switch.
- Normally closed, can be inverted for normally open operation.
- M16 stem threading each switch comes with a nut and silicon 0-ring.
Available for sale only in the U.S.
Tech Specs
- Part Number: FGD-0222
- Operating Range: -10° to 80°F (-23° to 26°C)
- Contact Rating: 50W
- Max Switch Volt: 100VDC
- Connection: Hardwired
- Housing: Black plastic
- Dimensions: 3.5 x 1.5 inches (89 x 38 mm)
- Sensor Series: Contact Series
- Compatibility: 400, 800, 1400, 1800, 2000, 2800, StationSitter, Skymetry, Express II and SCADA
- Warranty: 1 Year Limited
