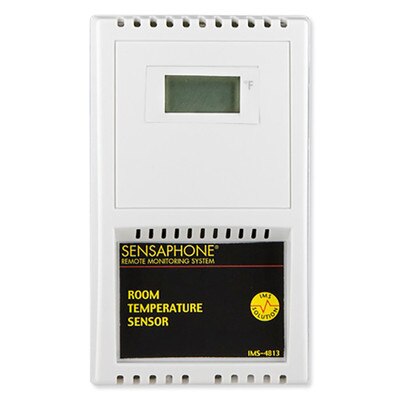

Sensaphone IMS Room Temperature Sensor with LCD Readout


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Sensaphone IMS Room Temperature Sensor with LCD Readout is designed to connect to the Sensaphone IMS series product line and monitor indoor temperatures. The electrical connection between the sensor and IMS unit is made via RJ-45 patch cable (not included). The sensor may be mounted either on a wall or to a single-gang electrical box.

The connection from the sensor to the Host or Node can utilize your existing network wiring infrastructure. For example, the sensor may be installed in another room or another floor. Connect the sensor to your structured wiring network via an RJ-45 jack. At the other end, connect a patch cable from your structured wiring patch panel directly to the Host or Node environmental input.

In The Box:

  • 1 x Temperature sensor
  • 2 x Plastic drywall anchors
  • 2 x #6 Metal tapping screws
  • 1 x 1/16-inch hex key

Available for sale only in the U.S.

Tech Specs

  • Part Number:
    • IMS-4811 (Fahrenheit)
    • IMS-4813 (Celsius)
  • Temperature Range:
    • Fahrenheit Model: 32°F to 95°F
    • Celsius Model: 0°C to 35°C
  • Humidity: 5 to 90 percent RH
  • Sensor Type: Solid State IC
  • Accuracy:
    • Fahrenheit Model: ± 3°F
    • Celsius Model: ± 1.7°C
  • Connector: RJ-45
  • Housing: White plastic
  • Dimensions: 4-3/4 x 2-7/8 x 1-3/16 inches
  • Compatibility: Sensaphone IMS-4000, IMS-4000 Node, and IMS-1000
  • Warranty: 3-Year
