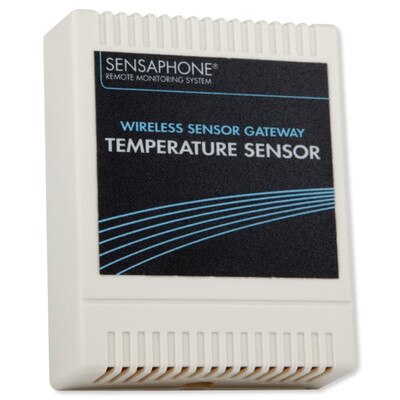

Sensaphone WSG30 Wireless Temperature Sensor
Product Description
Easy temperature monitoring.
The WSG Wireless Temperature sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter and temperature element for monitoring temperature wherever the device is installed. You can remove the internal temperature element and attach a remote temperature probe so that measurements can be made in a refrigerator, freezer or other harsh environment. The sensor comes with two AA alkaline batteries which will power the sensor for up to two years. An optional plug-in power supply is also available in which case the batteries become a backup if main AC power fails.
In The Box:
- WSG Wireless Temperature Sensor
- 2 x AA alkaline batteries
- #6 Metal tapping screws
- Plastic drywall anchors
NOTE: Works with Sensaphone WSG30 gateway, not included.
Available for sale only in the U.S.
Tech Specs
- Part Number: FGD-WSG30-TMP
- Name: Room Temperature Sensor
- Power: 2 AA alkaline batteries (included); optional 5VDC (300mA) plug-in adapter (not included)
- Battery Life: 2 Years
- Sensor Type: 2.8K thermistor
- Sensor Monitoring Temperature Range: 32° to 122°F (0° to 50°C)
- External Probe Monitoring Temperature Range: -20° to 122°F (-28° to 50°C) - external probe not included
- Accuracy: ± 1°F (± 0.56°C)
- Sensor Operating Temperature Range: 32° to 122°F (0° to 50°C)
- Sensor Operating Humidity: 5 to 90 percent RH non-condensing
- Wireless Range: 300 feet (90m) indoors
- Connection: Wireless
- Operating Frequency: ISM 2.4 GHz
- Transmit Power Output: 100mW (20dBm)
- Housing: White Plastic
- Dimensions: 3.1 x 3.9 x 1.1 inches (79 x 99 x 28mm)
- Sensor Series: WSG Wireless
- Warranty: 1 Year
