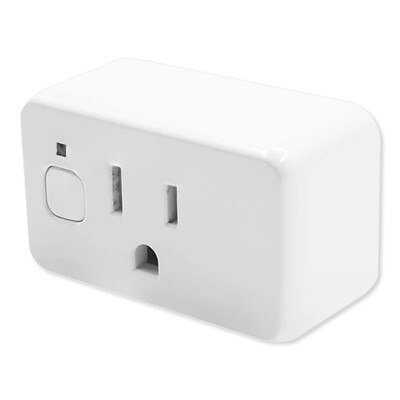

Shelly Plug Gen4 US

$18.00
SKU: SHG4PLUGx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

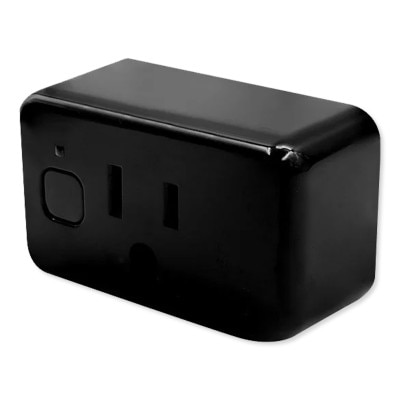

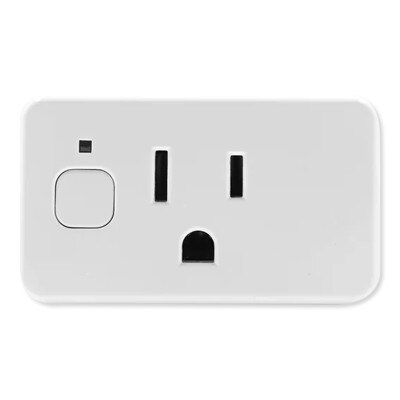

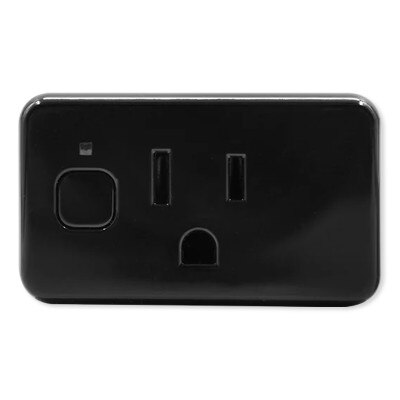

The Shelly Plug US Gen4 is a versatile plug-in controller that lets you remotely control or automate the On/Off function of nearly any connected appliance, lamp, or device via Wi-Fi, Bluetooth, Zigbee, or Matter wireless connections. The plug can record and report the energy usage of a plugged in device, helping you monitor and potentially reduce electricity costs by turning off devices remotely or when scheduled. The Plug also has a built-in light sensor which can be used to trigger automations such as turning on light switches when it gets dark or closing shutters or curtains when too much light is filling the room.

It can work independently if utilizing Wi-Fi or Bluetooth connections through the Shelly Smart Control app, or as part of a Zigbee, Wi-Fi compatible or Matter automation system. This will allow you to manage devices through the app or set automated triggers, like turning on when motion is detected or turning off at a predetermined time.

  • Wi-Fi, Bluetooth, Zigbee, and Matter compatible smart plug adds remote On/Off control to lights and small appliances and includes them as part of a smart automation or schedule
  • Fits into any standard outlet without blocking adjacent outlets
  • Supports devices using up to 1800W @ 15A and monitors energy consumption of a plugged-in device to assist in tracking activity status and optimize energy usage
  • Control directly from the Shelly Smart Control app with no hub required, or through your automation network's app or web portal
  • Works with 3rd party electrical equipment and automation systems via HTTP/HTTPs webhooks, no hub or cloud server required
  • Fully supports mjS scripting and KNX integration which allows users to create their own custom features and automations, up to 20 actions per week
  • Matter certification guarantees integration into any Matter ecosystem
  • Works with voice assistant ecosystems including Apple Siri, Amazon Alexa, and Google Home Assistant

Why You Would Use This Product:

The Shelly Plug US Gen4 is perfect for anyone looking to enhance their control over household or office electronics. Use it to control lamps, fans, coffee makers, or other devices from anywhere using your smartphone or voice commands. Its versatile wireless compatibility allows it to fit into virtually any smart home network, especially with its Matter certification. With built-in energy monitoring, you can track how much power your devices consume and optimize your energy use by turning off your plugged in device anytime, saving you money on your electricity bill. Automate your morning routine by scheduling your coffee maker to turn on before you wake up, or set your living room lights to turn off automatically when you leave the house. The Shelly Plug US Gen4 is a simple yet powerful way to make your home smarter, more efficient, and more convenient.

In The Box:

  • Shelly Wave Plug US
  • Manual

Notes:

  • No hub device required for control via Shelly Smart Control app.
  • Can connect to a compatible hub device depending on wireless connectivity.

Tech Specs

  • Part Number:
    • Black: G4 PLUG BLK
    • White: G4 PLUG WHT
  • Model: S4PL-00116US
  • EAN:
    • Black: 3800238072100
    • White: 3800238072094

Physical

  • Size (HxWxD): 1.50 x 2.52 x 2.01 inch (38 x 64 x 51 mm)
  • Weight: 64 g / 2.25 oz

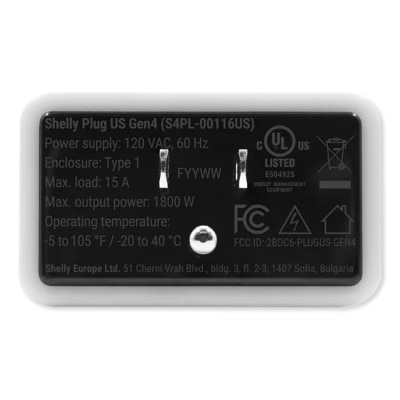

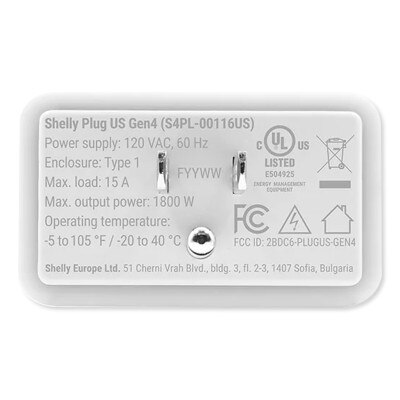

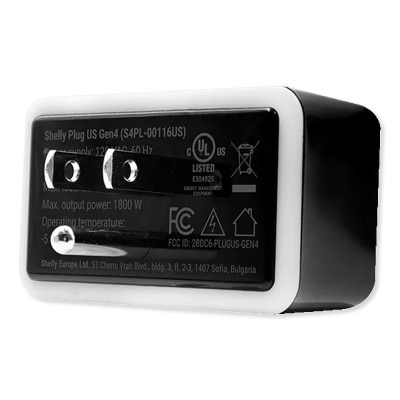

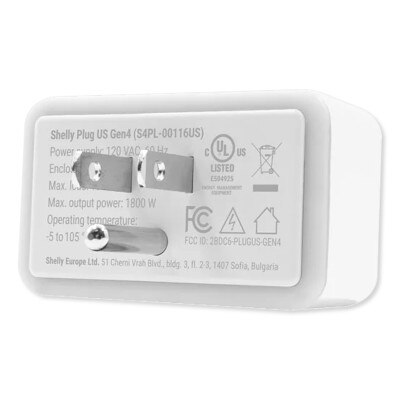

  • Compatible Plugs: NEMA 5-15 (Type-B)
  • Compatible Sockets: NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)
  • Shell Material: Plastic
  • Warranty: 2 Year

Environmental

  • Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
  • Humidity: 30 % to 70 % RH
  • Max. Altitude: 2000 m / 6562 ft
  • Glow-Wire Temperature: 750°C
  • Pollution Degree: 2
  • Required Forced Cooling: No

Electrical

  • Power Supply: 120 V~ 60 Hz
  • Power Consumption: <1.5 W
  • Rated Impulse-Withstand Voltage: 1500 V

Output Circuits Ratings

  • Max. Switching Voltage: 120 V~
  • Max. Switching Current: 15 A
  • Max. Output Power: 1800 W (Resistive Load Only)
  • Number of Switching Cycles: 10000
  • Overvoltage Category: II
  • Duty-Type: S1
  • Switch Type: One-way
  • Switch Configuration: SPNO (single-pole, normally-open)
  • Type of Circuit Disconnection: Micro

Sensors, Meters

  • Voltmeter (AC): Yes
  • Ammeter (AC): Yes
  • Power and Energy Meters: Yes
  • Internal-Temperature Sensor: Yes
  • Light Sensor: Yes

Radio

  • Wi-Fi:
    • Protocol: 802.11 b/g/n/ax
    • RF Bands: 2401 – 2473 МHz
    • Max. RF Power: <20 dBm
    • Range (Depends on Local Conditions): Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
  • Bluetooth:
    • Protocol: 5 (LE)
    • RF Bands: 2402 – 2480 MHz
    • Max. RF Power: <20 dBm
    • Range (Depends on Local Conditions): Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
  • Zigbee:
    • Protocol: 802.15.4
    • RF Bands: 2405 – 2480 MHz
    • Max. RF Power: <20 dBm
    • Range (Depends on Local Conditions): Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors

Microcontroller Unit

  • CPU: ESP-Shelly-C68F
  • Flash: 8 MB

Firmware Capabilities

  • Schedules: 20
  • Advanced Schedules: Yes
  • Webhooks (URL Actions): 20 with 5 URLs per hook
  • Scripting: Yes
  • MQTT: Yes
  • UDP: Yes
  • Encryption: Yes
  • KVS (Key-Value Store): Yes
