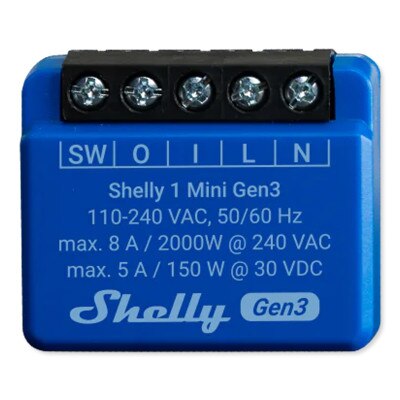

Shelly Wi-Fi 1 Mini Gen3 Smart Relay
Product Description

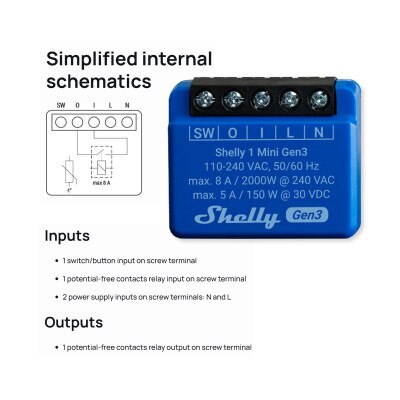

The Shelly Wi-Fi 1 Mini Gen3 Smart Relay offers a compact, versatile solution for automating and monitoring your electrical circuits or appliances using Wi-Fi technology. Its slim design makes it ideal for installation behind wall switches or within appliance enclosures. With built-in Wi-Fi, it connects directly to your network without the requirement of a smart hub, plus, it can be controlled via the Shelly app or seamlessly integrated with popular smart home systems like Amazon Alexa, Google Home, and Home Assistant. Equipped with a single switch/button input, two power supply inputs, one potential-free contacts relay input, and one potential-free contacts relay output, this device supports various load types, including resistive loads (e.g., incandescent bulbs and heaters), capacitive loads (e.g., capacitor banks and electronics), and inductive loads (e.g., LED drivers, fans, refrigerators, and air conditioners). Engineered with advanced safety features such as overload and overheat protection, the Shelly 1 Mini Gen3 delivers a powerful combination of convenience, reliability, and energy management in a compact package.
- Built-in Wi-Fi for direct control via the Shelly app—no hub needed

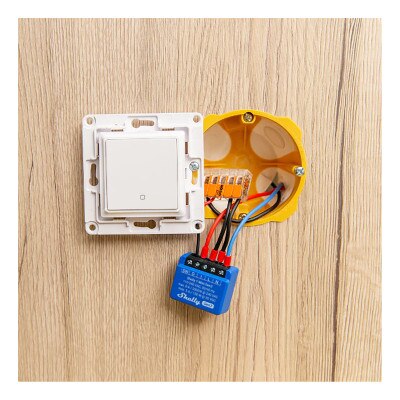

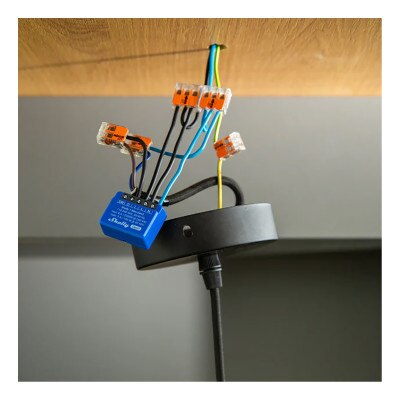

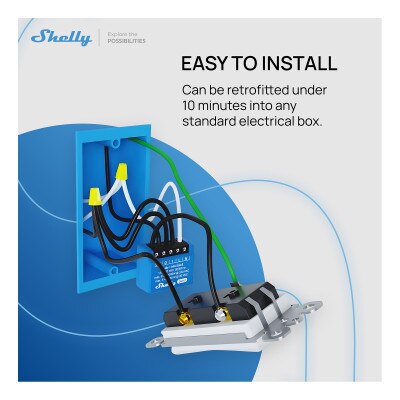

- Space-saving design with easy installation in standard electrical enclosures with its compact size
- Voice control compatibility allows it to work with Alexa, Google Home, and Home Assistant for seamless voice commands and automation
- Includes overheat protection and supports various devices, such as lights, fans, and small appliances
- Advanced scheduling and scene setup for improved energy efficiency and convenience
Why You Would Use This Product:
The Shelly 1 Mini Gen3 is perfect for homeowners looking to integrate smart technology into their existing electrical setup without the need for complex installations. For example, you can automate your outdoor lights to turn on at dusk and off at dawn, ensuring energy savings while enhancing home security. If you're away from home, use the Shelly app to remotely turn off your appliances like fans, coffee makers, or space heaters, giving you peace of mind. The device's scheduling capabilities also make it easy to set your lighting, fans, or small appliances to operate at specific times, improving energy efficiency. Whether you're looking to automate lighting, control devices remotely, or track your energy use, the Shelly 1 Mini Gen3 is a versatile solution for your home automation needs.

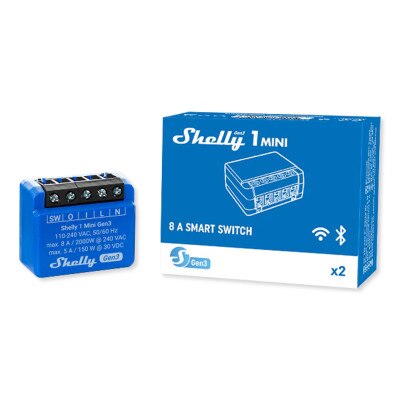

In The Box:
- Wi-Fi 1 Mini Gen3 Smart Relay
- Manual
NOTE: Requires connection to a Wi-Fi network.
Tech Specs
- Part Number: Gen 3 1 Mini
- EAN: 3800235261576
- Power Supply: 110 – 240 VAC
- Relay: Dry, NO contact, 1-pole, µ contact
- Power Consumption: <1.2 W
- External Protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
- Max. Switching Voltage:
- 240 VAC
- 30 VDC
- Max. Switching Power:
- 2000 W/240 VAC
- 150 W/30 VDC
- Max. Switching Current:
- 8 A/240 VAC
- 5 A/30 VDC
- Voltage Protection/Cutoff: No
- Current Protection/Cutoff: No
- Max Power Protection/Cutoff: No
- Internal-Temperature Sensor: Yes
- Wi-Fi Protocol: 802.11 b/g/n
- RF Band: 2401 – 2495 ÃŒHz
- Max. RF Power: <20 dBm
- Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2
- RF Band: 2400 – 2483.5 MHz
- Max. RF Power: <4 dBm
- Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP-Shelly-C38F
- Flash: 8 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- Scripting: Yes
- UDP: Yes
- Advanced Schedules: Yes
- KVS (Key-Value Store): Yes
- Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
- Conductor Cross Section: 0.2 to 2.5 mm? / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
- Mounting: Wall box
- Terminal Color: Black
- Shell Material: Plastic
- Shell Color: Blue, C-95%; M-53%; Y-0%; K-0%
- Ambient Working Temperature: -5 °F to 105 °F (-20 °C to 40 °C)
- Humidity: 30% to 70% RH
- Max Altitude: 2000 m / 6562 ft

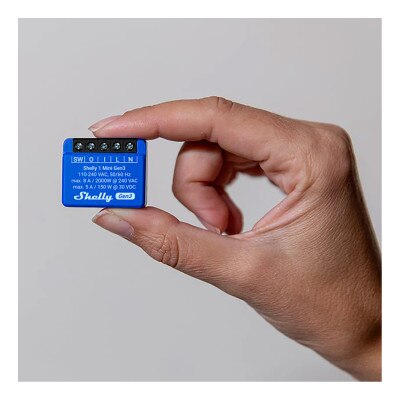

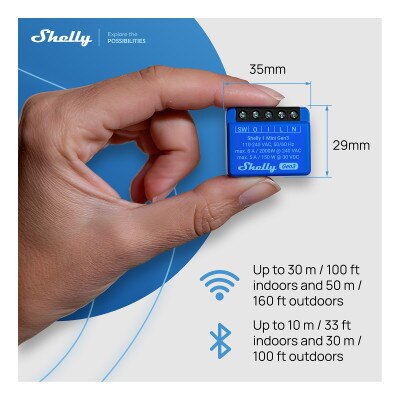

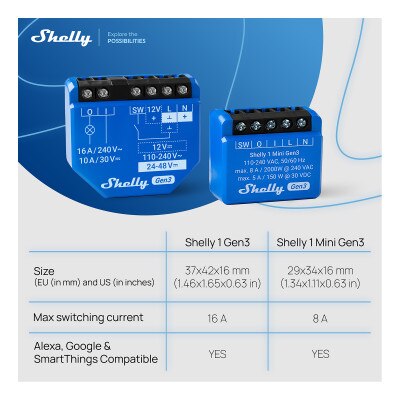

- Size (HxWxD): 1.34 x 1.11 x 0.63 ±0.02 inches (29x34x16 ±0.5 mm)
- Weight: 19 g/0.65 oz
- Warranty: 3 Year
