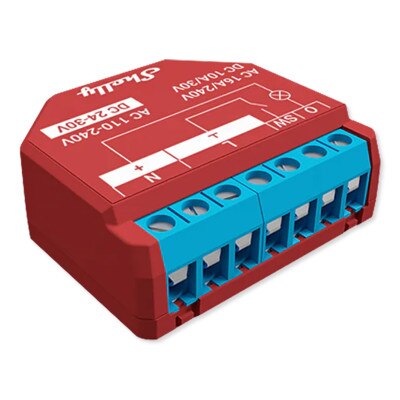

Shelly Wi-Fi Plus 1PM UL Smart Relay
Product Description

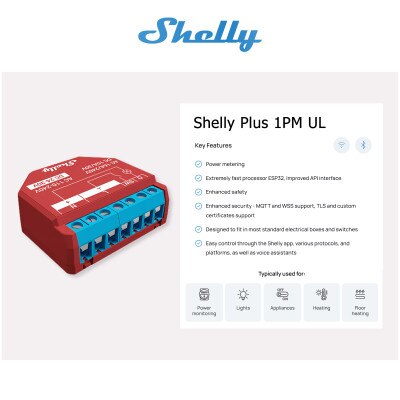

The Shelly Wi-Fi Plus 1PM UL Smart Relay brings automation and monitoring to your electrical circuits and appliances with Wi-Fi technology. Compact enough to fit behind wall circuits or light switches, it connects directly to your Wi-Fi network without the need for a hub. Control and monitor the device through the Shelly app or integrate it seamlessly with popular smart home platforms like Amazon Alexa, Google Home, and Samsung SmartThings. It includes a single switch/button input, five power supply inputs, and one relay output with built-in power measurement. The device supports various load types, including resistive loads like incandescent bulbs and heating devices, capacitive loads such as capacitor banks and electronic equipment, and inductive loads like LED drivers, transformers, fans, refrigerators, and air conditioners. Its power monitoring feature provides real-time insights into energy usage, helping you reduce costs and optimize consumption. Built with advanced safety features, including overload and overheat protection, the Shelly Plus 1PM UL Smart Relay combines convenience, reliability, and efficiency in a small yet powerful package.
- Built-in Wi-Fi for direct control via the Shelly app—no hub needed
- Real-time power monitoring to track energy consumption with free Cloud data storage

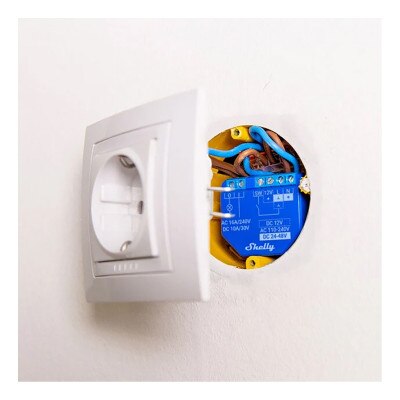

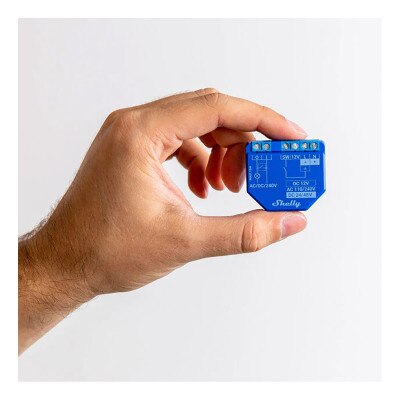

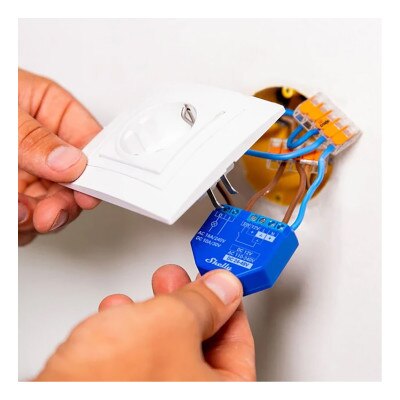

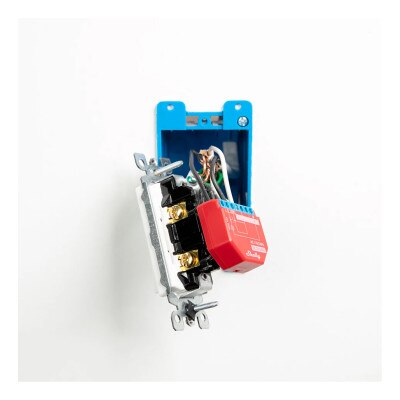

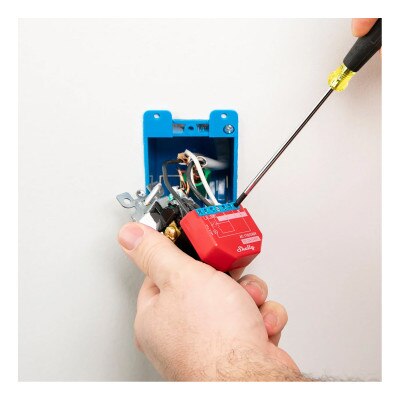

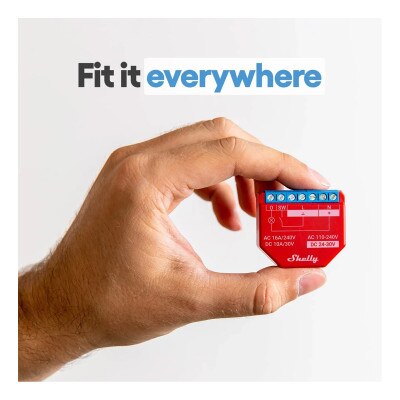

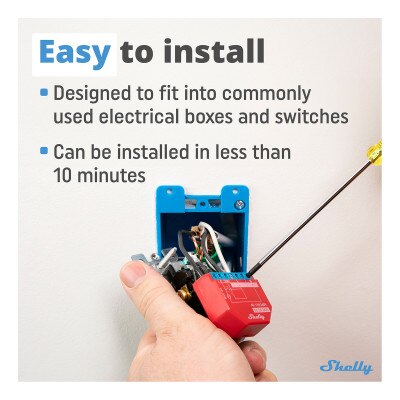

- Compact size for easy installation in standard electrical enclosures
- Compatible with Alexa, Google Home, and Samsung SmartThings for voice control and automation
- Overload and overheat protection for enhanced safety
- Advanced scheduling and scene automation for energy efficiency and convenience
Why You Would Use This Product:
The Shelly Wi-Fi Plus 1PM UL Smart Relay is perfect for managing energy use and automating everyday tasks. Use it to monitor and control your home's lighting, ensuring lights turn off when not in use to save energy. Automate appliances like coffee makers or heaters to fit your schedule, or track energy consumption to identify and eliminate wasteful habits. Set it up to control outdoor lighting or holiday decorations, ensuring they turn on and off at the right times. The power metering feature makes it ideal for homeowners and businesses looking to reduce utility bills and increase energy efficiency.
In The Box:

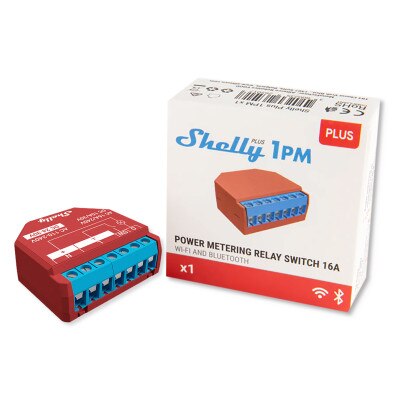

- Wi-Fi Plus 1PM UL Smart Relay
- Manual
NOTE: Requires connection to a Wi-Fi network.
Tech Specs
- Part Number: Plus 1 PM-1 UL
- EAN: 3800235262016
- Power Supply: 110 – 240 VAC / 24 – 30 VDC
- Power Consumption: <1.2 W
- Max. Switching Voltage AC: 240 VAC
- Max Switching Voltage DC: 30 V
- Max. Switching Current AC: 16 A
- Max. Switching Current DC: 10 A
- Internal-Temperature Sensor: Yes
- Voltmeter (AC): Yes
- Ammeter (AC): Yes
- Wi-Fi Protocol: 802.11 b/g/n
- RF Band: 2400 – 2495 MHz
- Max. RF Power: <20 dBm
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP32-U4WDH
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- Scripting: Yes
- CoAP: Yes
- Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
- Conductor Cross Section: 0.5 to 1.5 mm2 / 20 to 16 AWG
- Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
- Mounting: Wall console
- Color: Red
- Shell Material: Plastic
- Ambient Working Temperature: -5 °F to 105 °F (-20 °C to 40 °C)
- Humidity: 30% to 70% RH
- Max Altitude: 2000 m / 6562 ft
- Size (HxWxD): 1.46 x 1.11 x 1.65 ±0.63 inches (37 x 42 x 16 ±0.5 mm)
- Weight: 27 g / 0.95 oz
- Warranty: 3 Year
