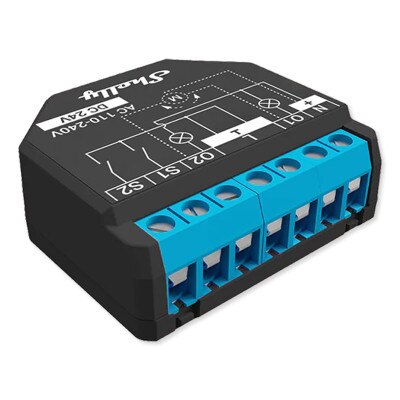

Shelly Wi-Fi Plus 2PM UL Smart Relay

$27.49
SKU: SHPLUS2PM

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Shelly Plus 2PM is a versatile and compact Wi-Fi enabled smart relay designed to provide seamless control over two electrical circuits. Equipped with a power metering feature, this device not only automates your home but also helps you monitor and optimize energy consumption. Its compact size makes it ideal for installation behind wall switches or inside electrical panels, maintaining the aesthetics of your home while adding powerful functionality. It includes two switch/button inputs, five power supply inputs, three power supply inputs, and two relay outputs with built-in power measurement. The device supports various load types, including resistive loads like incandescent bulbs and heating devices, capacitive loads such as capacitor banks, electronic equipment, and motor start capacitors, and inductive with RC Snubber loads like LED drivers, transformers, fans, refrigerators, and air conditioners. With support for Alexa, Google Assistant, and local API integrations, it's a perfect addition to any smart home ecosystem. Whether you're automating your blinds, controlling lights, or monitoring appliances, the Shelly Plus 2PM delivers reliable performance and energy efficiency.

  • Built-in Wi-Fi for direct control via the Shelly app—no hub needed
  • Real-time power monitoring to track energy consumption with free Cloud data storage

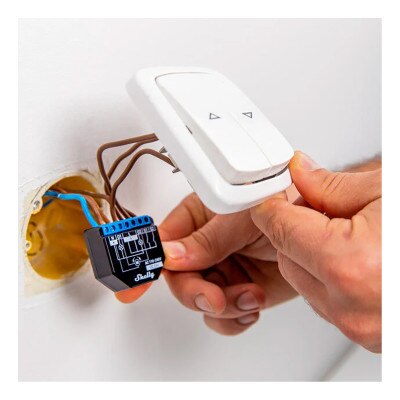

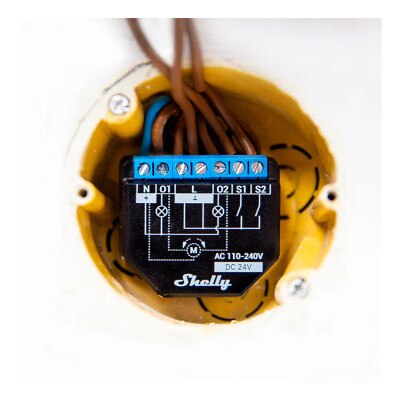

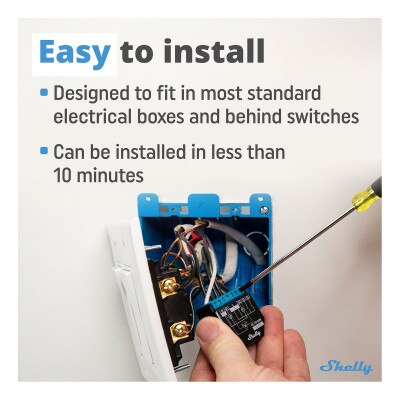

  • Compact size for easy installation in standard electrical enclosures
  • Compatible with Alexa, Google Home, and Samsung SmartThings for voice control and automation
  • Overload and overheat protection for enhanced safety
  • Advanced scheduling and scene automation for energy efficiency and convenience

Why You Would Use This Product:

The Shelly Plus 2PM is perfect for automating everyday tasks around your home. Use it to control motorized blinds, ensuring they open and close on schedule to maximize energy efficiency and comfort. Automate your outdoor lighting to enhance home security and save on energy costs. You can even monitor the power usage of high-energy appliances like heaters or air conditioners to identify cost-saving opportunities. This device is ideal for anyone looking to increase convenience, improve energy efficiency, and reduce their electricity bill.

In The Box:

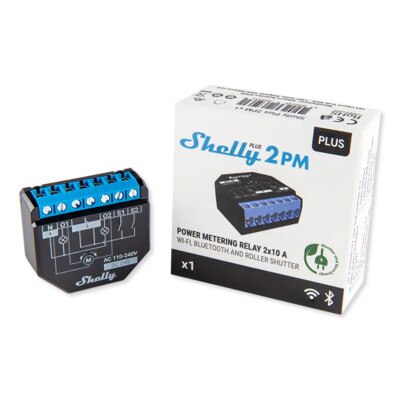

  • Wi-Fi Plus 2PM UL Smart Relay
  • Manual

NOTE: Requires connection to a Wi-Fi network.

Tech Specs

  • Part Number: Plus 2 PM
  • EAN: 3800235265536
  • Power Supply: 120 VAC, 50/60Hz
  • Power Consumption: <1.4 W
  • Max. Switching Voltage AC: 120 VAC
  • Max Switching Voltage DC: N/A
  • Max. Switching Current AC: 8 A (per channel), 16 A (total)
  • Max. Switching Current DC: N/A
  • Internal-Temperature Sensor: Yes
  • Voltmeter (AC): Yes
  • Ammeter (AC): Yes
  • Wi-Fi Protocol: 802.11 b/g/n
    • RF Band: 2400 – 2495 MHz
    • Max. RF Power: <20 dBm
    • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
    • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-U4WDH
  • Flash: 4 MB
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • MQTT: Yes
  • Scripting: Yes
  • CoAP: No
  • Screw Terminals Max Torque: 0.25 Nm / 2.2 bin
  • Conductor Cross Section: 1.0 to 2.5 mm2 / 20 to 14 AWG
  • Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
  • Mounting: Flush mounting
  • Color: Black
  • Shell Material: Plastic
  • Ambient Working Temperature: -5 °F to 105 °F (-20 °C to 40 °C)
  • Humidity: 30% to 70% RH
  • Max Altitude: 2000 m / 6562 ft

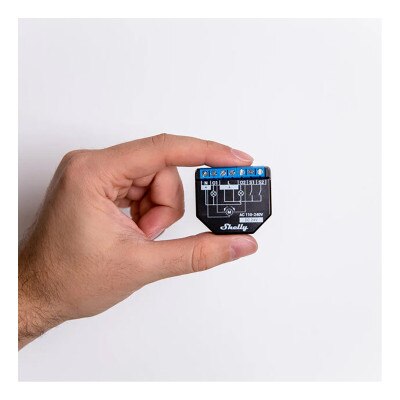

  • Size (HxWxD): 1.46 x 1.65 x 0.63 inches (37 x 42 x 16 mm)
  • Warranty: 3 Year
