Simply45 10G Rated RJ45 Ultra Slim Shielded Field Plug for Cat6/6a/7a Shielded LAN Cables
Product Description

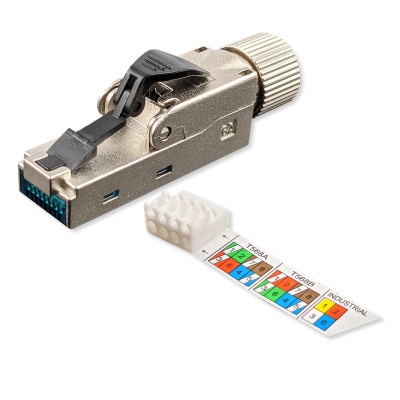

The S45-1710S RJ45 Field Plug is a toolless 1-piece field plug providing outstanding performance, reliability, and ease of use for today's 10GBaseT networking applications.It supports Cat7a/7/6a/6 shielded cables with 22-26 AWG conductor diameters. S45-1710S Improvements Include:
- Ultra Slim Design – Supports Side-by-Side Installation in High Density Patch Panels and Device Sockets
- Built-In Strain Relief – Easier to Use and Supports Shallower Depth Installations
- PoE/PoH – Support for IEEE 802.3bt
Other Features:
- Fully Shielded One Piece Construction, no special tools needed
- Improved Load Bar for faster & easier wire pattern termination
- Wiring Label: TIA 568 A/B Patterns
- Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
- All Shielded Category Cable Constructions Supported for Cat7a, Cat7, Cat6a, and Cat6
- Ideal for Large Diameter Cables and Conductors
- Supports 22-26 AWG Solid Wire/23-27 AWG Stranded Wire
- Overall Cable Diameters: 6.0mm to 9.0mm
- Reusable Termination Capability: Up to 5 Times
- Protection Category: IP 20

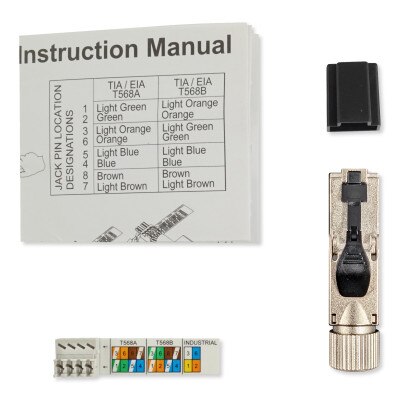

In The Box:
- Shielded RJ45 Field Plugs (10 Pack)
Tech Specs
- Part Number: S45-1710S
- UPC: 810093720187
- Quantity: 10 Pack
- Wiring Label: TIA 568 A/B Patterns
- Reusable Termination Capability: Up to 5 Times
- PoE/PoH Support: IEEE 802.3bt
- Protection Category: IP 20
- Overall Cable Diameters: 6.0mm to 9.0mm
- Size: 1.8 (L) x 0.53(H) x 0.4(W) inches (48.05 x 13.5 6 x 11.68)
- Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
