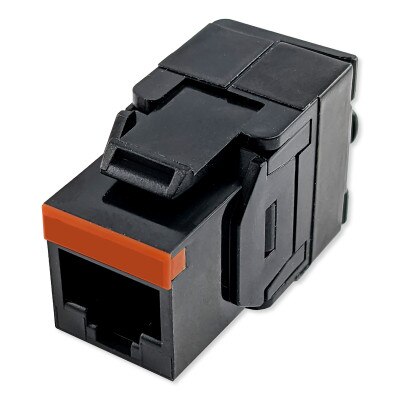

Simply45 Cat5e UTP 180-Degree Unshielded Keystone Jack
Product Description
The Simply45 Cat5e UTP 180 Degree Unshielded Keystone Jack is for networks using Cat5E UTP. It has a cabling tool-less design for fast and easy terminations.
Features:

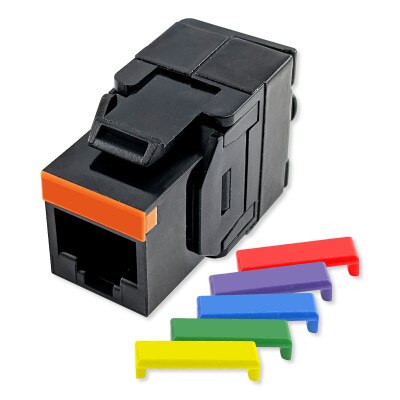

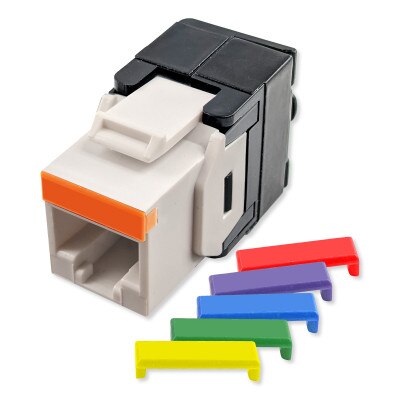

- Interchangeable (6) Color Coded Snap-On Bars
- Narrow Design Supports Side-by-Side Installation in Patch Panels
- Wire Layout Diagram Simplifies Termination and Reduces Untwisting
- of Cable Wires
- Supports Cat5e UTP Cabling
- Tool-less Design Requires No Punchdown or Specialty Tooling
- 180° Degree Design is Ideal for Patch Panel Applications
- UL Listed
- Professional Quality

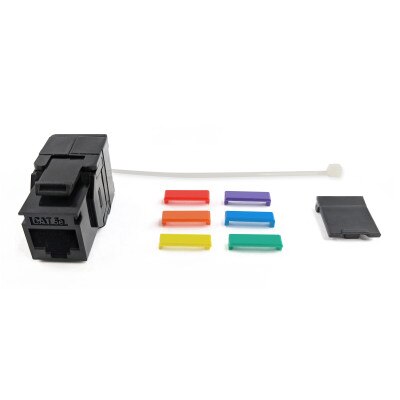

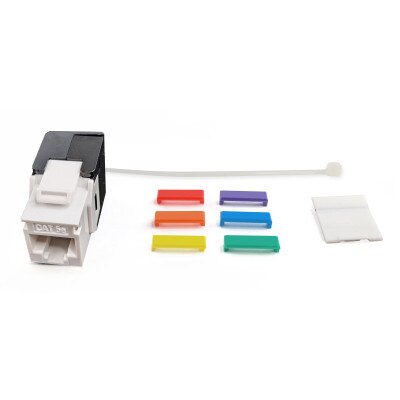

In The Box:
- Simply45 Cat5e UTP 180 Degree Unshielded Keystone Jack
Tech Specs
- Part Number:
- S45-3500B: Black

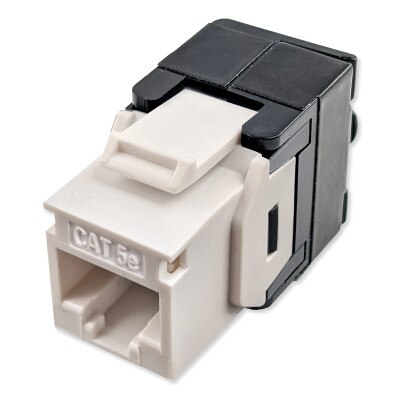

- S45-3500W: White
- UPC:
- S45-3500B: 810093720088
- S45-3500W: 810093720095
- Mechanical: 24AWG Wire Conductors – Cat5e UTP cabling
- Plug Insertion Life: >=750 times plug in
- Contact Force: 99.2g (3.5oz) FCC Plug
- Plug Retention Force: 30lb (133n/13/3kg)
- Operating Temperature: -40°F to 150°F (-40°C to 66°C)
- Electrical: Insulation Resistance: >=500 MΩ
- Dielectric Withstand Voltage: 100VAC RMS 60Hz
- Contact Resistance: <=20mΩ
- Current Rating: 1.5A at 68F
- Contact Plating: 50μ 24ct gold
- Dimensions: 1.4(L) x 0.8(H) x 0.6(W) inches (36.7 x 21.64 x 17.01mm)
- Standards/Compliance:
- ISO/IEC 11801 Class D
- ANSI/TIA 568.2-D
- ANSI/TIA 1096-A
- ANSI/TIA 606-C
- EN 50173
- IEC 60603-7-51
- PoE/PoH: IEEE 802.3bt
- UL 1863, cULus Listed
