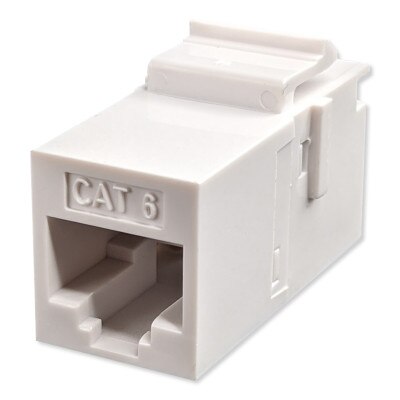

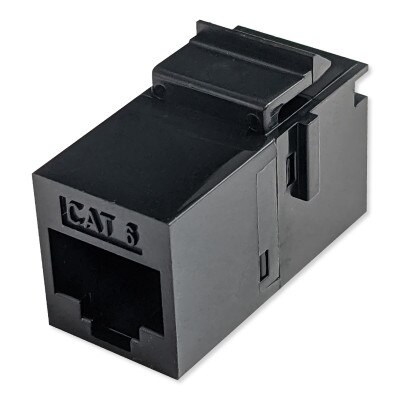

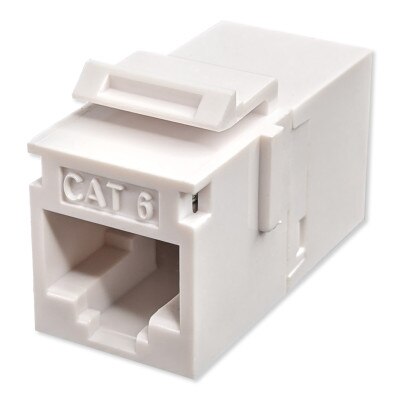

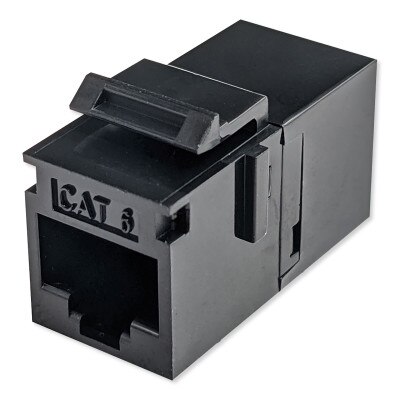

Simply45 Cat6 Unshielded Keystone Feed-Thru Coupler
Product Description
Keystone Cat6 UTP RJ45 couplers provide feed-through patching via any industry-standard patch panel, keystone wall plate, or surface mount box. The snap-in RJ45 Cat6 connector jack is simple to install and provides a robust female to female in-line RJ45 Cat6 connector coupler.
Features:
- Female to Female CAT6 UTP RJ45 Keystone Coupler
- 50μ Gold Plated
- Snap-in design / Slim Style
- Available in 10 packs
- RoHS Compliant
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class E
In The Box:
- Simply45 Cat6 Unshielded Keystone Feed-Thru Coupler
Tech Specs
- Part Number:
- S45-3260B (Black)
- S45-3260W (White)
- UPC:
- S45-3260B: 817777019964
- S45-3260W: 817777019971
- Material: Polycarbonate
- Insulation Resistance: >= 500 MΩ
- Dielectric Withstand Voltage: 100VAC RMS 60Hz
- Contact Resistance: <= 20 mΩ
- Current Rating: 1.5A at 68°F
- Plug insertion Life: >=750 times plug in
- Contact Force: 99.2g (3.5oz) FCC Plug
- Plug Retention Force: 30lb (133n/13.3Kg)
- Standards/Compliance:
- RoHS Compliant
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class E
