  • Speaker Wire, 16AWG, 4C, Oxygen Free, 500'

Speaker Wire, 16AWG, 4C, Oxygen Free, 500'

$216.46
SKU: WR164SP05

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Description: 16/2 Stranded CM/CL3 Sound Audio Cable.

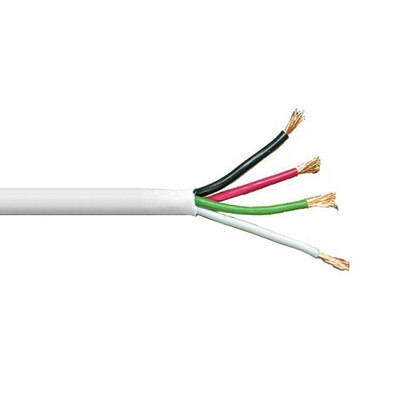

Construction: This cable consists of four bare copper insulated conductors and an overall jacket.

Application: General Purpose Power Limited Circuit Cable Used in Audio Applications

Tech Specs

Construction:

  • Conductor: 16 AWG 26/30 Stranded Bare Copper
  • Insulation: Polypropylene
  • Insulation: Thickness 0.010" nom.
  • Insulation Diameter: 0.078 nom.
  • Lay Length: 3.5" nom.

Properties:

  • Temperature Rating: -20 to 60° C
  • Operating Voltage: 300 Volts max.
  • Capacitance: 22 pf/ft nom.
  • Impedance: 70 Ohms nom.
  • DC Resistance: 4.1 Ohms/M' at 20 at 20° C
  • Flame Rating: UL Vertical Tray
