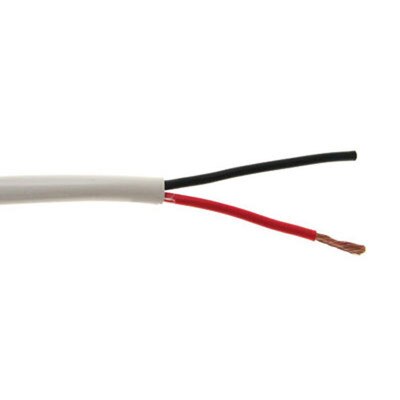

Speaker Wire, 12AWG, 2C, Direct Burial, Oxygen Free, 500'
Product Description
Description: INDOOR/OUTDOOR PRO GRADE SPEAKER CABLE – 2C/12 AWG 65 STRAND OFC, DIRECT BURY/SUN RES HD PVC JKT – WHITE
Applications: High End Professional Audio In-Wall Rated, Sunlight Resistant Outdoor Rated, Direct Burial, Home Theater Grade, Speaker Audio
Features:
- 99.97 percent Oxygen Free bare copper conductors
- High Strand Count
- Heavy Duty PVC-UV jacket rated for Direct Burial/Sunlight Resistant
- Easy Pull Coated Premium PVC jacket
- Ultra Flexibility
- Easy Strip Construction
- UL Listed, CMR In-Wall Rated, CMX, NEC CL3R, and CEC CMG FT4; RoHS, CE
Construction: This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip Heavy Duty Premium UV treated PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
Available in reels of: 500 Ft.
Tech Specs
- Part Number: 12/2OFC-HD-WT
- Marking: STRUCTURED CABLE PRODUCTS – – – 12/2OFC-HD E198137 SCP3 (UL) CL3 C(UL) CMR 2C 12AWG 65 STRAND OXYGEN FREE COPPER INDOOR/OUTDOOR-SUN RES FT4 75C CE RoHS ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 ***M
Construction Characteristics
Conductor
- Material: Stranded Bare Copper
- Size: 12AWG x 2C (3.32mm^2)
- Construction: 65/0.254mm ±0.004mm
Insulation
- Material: PVC
- Min. Thickness: 0.33mm
- Avg. Thickness: 0.36mm
- Diameter: 3.20mm ±0.05mm
- Colors: Black and Red
Jacket
- Material: PVC
- Min. Thickness: 0.80mm
- Avg. Thickness: 0.95mm
- Diameter: 8.3mm ±0.20mm
- Rip Cord: Nylon
- Color: White
Electrical & Physical Characteristics
- Operating Temperature Range: – 20°C + 70°C
- Conductor Resistance: Max 5.8 ohm/km at 20°C
- Insulation Resistance: Min 50M ohm*km at 20°C
- Dielectric Strength: Min AC1.5KV
Insulation
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 100 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 50 percent (100°C 168h)
Jacket
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 100 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 50 percent (100°C 168h)
