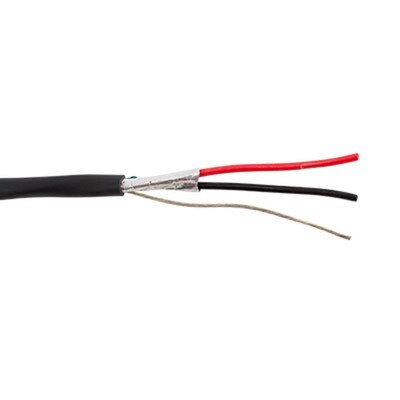

Speaker Wire, 14AWG, 2C, Direct Burial, OFC Shielded, 500'
Product Description
Description: 2C/14 AWG 105 STRAND OFC FOIL SHIELD – DIRECT BURIAL – BLACK – 500 FT SPOOL
Applications: Security, Speaker, Audio, Alarm, HVAC, Access Control, Card Access, Irrigation Control, CCTV Power and Commercial Applications.
Available in spools of: 500 Ft.
Tech Specs
- Part Number: 14/2SHDB-500
- Marking: STRUCTURED CABLE PRODUCTS – – – P/N 14/2SH-DB – – – 2 COND 14 AWG STRANDED SHIELDED PE JKT CMX OUTDOOR / DIRECT BURIAL — CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 3 4 5 6 7 8 9 XXXXFT
- Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725 EU RoHS 2011/65/EU Compliant
- Application: Speaker Cable
Construction Characteristics
Conductor
- Material: Stranded Bare Copper
- Size: 14AWG X 2C (2.11mm2)
- Construction: 105/0.16mm (0.0063 inch) ±0.004mm
Insulation
- Material: PVC
- Min. Thickness: 0.33mm (0.0130 inch)
- Avg. Thickness: 0.36mm (0.0142 inch)
- Diameter: 2.60mm (0.1024") ±0.05mm
- Colors: Black and Red
Shield
- Core Wrap: PE Tape
- Drain Wire: 7/0.20mm (0.0008 inch) ±0.004mm
- Shield: AL Foil
- Filler: Waterproof
Jacket
- Material: LLDPE
- Min. Thickness: 0.60mm (0.0236 inch)
- Avg. Thickness: 0.54mm (0.0213 inch)
- Diameter: 7.20mm (0.2835 inch) ±0.10mm
- Color: Black
Electrical & Physical Characteristics
- Rating: 75°C 300V
- Conductor Resistance: Max 9.2ohm/km at 20°C
- Insulation Resistance: Min 50M ohmkm at 20°C
- Dielectric Strength: Min AC1.5KV
- AC Leakage Current Through Overall Jacket: AC 1500V
- Twists Per Foot: 2.5
- Cold Bend Test: -20°C 4 hours; No Cracking
Insulation
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 150 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 80 percent (100°C 168h)
Jacket
- Unaged:
- Tensile Strength: 10.8Mpa
- Elongation: 300 percent
- Aged:
- Tensile Strength: 9.2Mpa (100°C 168h)
- Elongation: 150 percent (100°C 168h)
