Speaker Wire, 16AWG, 4C, Direct Burial, Oxygen Free, 500'

$227.42
SKU: WR164SP05DB

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

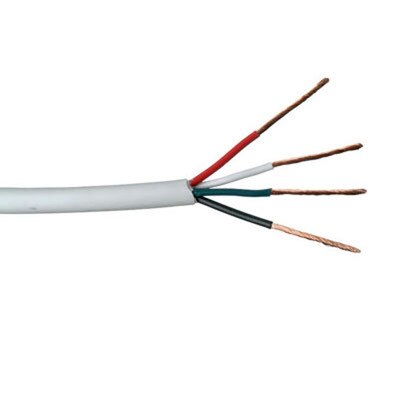

Description: INDOOR/OUTDOOR PRO GRADE SPEAKER CABLE – 4C/16 AWG 65 STRAND OFC, DIRECT BURY/SUN RES HD PVC JKT – WHITE – 500 FT BOX

Applications: High End Professional Audio In-Wall Rated, Sunlight Resistant Outdoor Rated, Direct Burial, Home Theater Grade, Speaker Audio

Features:

  • 99.97 Percent Oxygen Free bare copper conductors
  • High Strand Count
  • Heavy Duty PVC-UV jacket rated for Direct Burial/Sunlight Resistant
  • Easy Pull Coated Premium PVC jacket
  • Ultra Flexibility
  • Easy Strip Construction
  • UL Listed, CMR In-Wall Rated, CMX, NEC CL3R, and CEC CMG FT4; RoHS, CE

Construction: This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip Heavy Duty Premium UV treated PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

Available in boxes of: 500 Ft.

Tech Specs

  • Part Number: 16/4OFC-HD-WT
  • Marking: STRUCTURED CABLE PRODUCTS – – – P/N 16/4OFC-HD – – – 4C 16 AWG 65 STRAND OXYGEN FREE COPPER E198137 (UL) CL3R OR CMR C(UL)US FT4 75C DIRECT BURIAL – SUN RES PVC (ROHS) CE ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXM
  • Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725, Type (UL) CMR/CL3R or c(UL) FT4, EU RoHS 2011/65/EU Compliant
  • Application: Speaker Cable

Construction Characteristics

Conductor

  • Material: Stranded Bare Copper
  • Size: 16AWG X 4C (1.31mm2)
  • Construction: 65/0.16mm (0.0063 inch) ±0.004mm

Insulation

  • Material: PVC
  • Min. Thickness: 0.27mm (0.0106 inch)
  • Avg. Thickness: 0.31mm (0.0122 inch)
  • Diameter: 2.10mm (0.0827") ±0.05mm
  • Colors: Black, Red, White, Green

Jacket

  • Material: PVC
  • Min. Thickness: 0.95mm (0.0374 inch)
  • Avg. Thickness: 0.86mm (0.0339 inch)
  • Diameter: 7.00mm (0.2756 inch) ±0.10mm
  • Rip Cord: Nylon
  • Color: White

Electrical & Physical Characteristics

  • Rating: 75°C 300V
  • Conductor Resistance: Max 15.5ohm/km at 20°C
  • Insulation Resistance: Min 50M ohmkm at 20°C
  • Dielectric Strength: Min AC1.5KV
  • AC Leakage Current Through Overall Jacket: AC 1500V
  • Twists Per Foot: 2.5
  • Cold Bend Test: -20°C 4 hours; No Cracking

Insulation

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 150 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 80 percent (100°C 168h)

Jacket

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 150 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 80 percent (100°C 168h)
