  • Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port

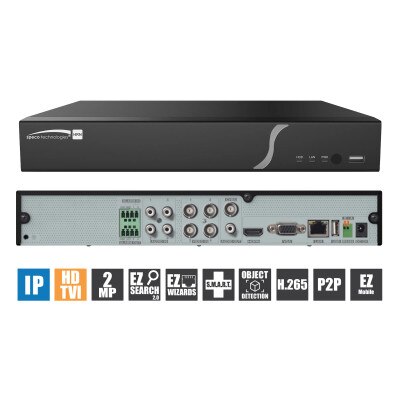

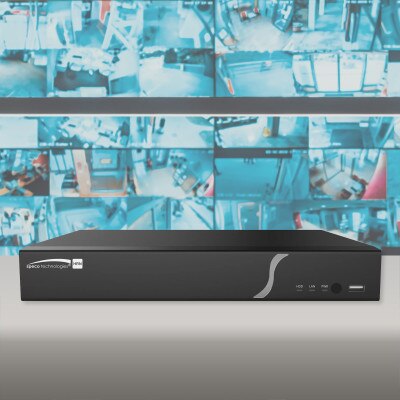

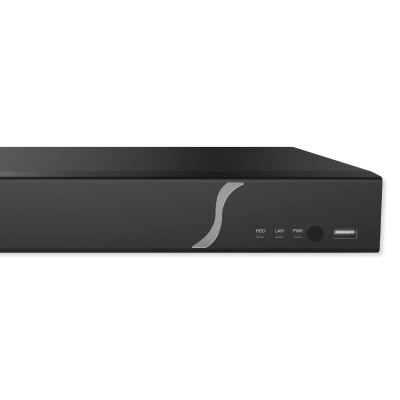

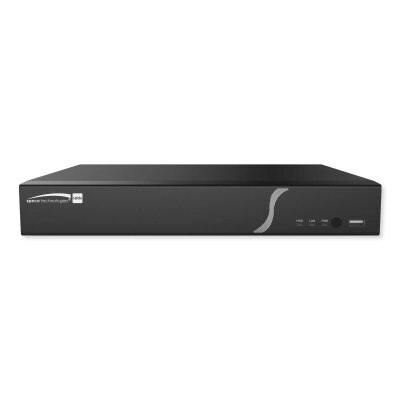

Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port

$356.20 to $460.05
SKU: SPH6HRNx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port provides high-quality video recording and surveillance management for both analog and IP security cameras. This hybrid DVR supports up to six channels, 4 analog and 2 IP channels, allowing users to integrate a mix of traditional analog and modern high-definition IP cameras for a flexible security solution. The built-in SATA port allows for additional storage capacity with an external drive so you can record more footage for later review. The DVR supports Speco Tech's S.M.A.R.T. technology and Smart Analytics software adds advanced playback features and smart security monitoring to easily identify subjects and improve the responsiveness of your surveillance system. When paired with a compatible camera, the DVR can utilize advanced motion detection and Smart Playback functions such as drawing a line or box across a specific area during livestreams or playback review. Users can monitor live or recorded footage from anywhere via web browser, your Apple TV, Amazon Fire TV, or your mobile device through the Speco Blue app. Designed for seamless integration into residential or commercial security systems, this DVR offers a scalable, user-friendly solution for enhanced safety and security.

  • DVR supports up to six channels for a hybrid mix of analog and IP security cameras
  • 1 SATA port allows for high-capacity storage and extended recording times, plus easy video exporting via USB
  • SMART technology provides advanced security features including motion detection, line crossing, Smart Search, and more to deliver alerts in real time
  • Remote access capabilities via web browser, your Apple TV, Amazon Fire TV, or your mobile device
  • User-friendly interface simplifies navigation and playback for easy operation

Why You Would Use This Product:

The Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port is an ideal security solution for homeowners and businesses looking to enhance their surveillance capabilities. In a residential setting, this DVR allows homeowners to monitor entry points, driveways, or backyards with a combination of legacy analog cameras and high-definition IP cameras. For commercial applications, such as retail stores, offices, or warehouses, the hybrid system provides a cost-effective way to upgrade an existing security setup while maintaining compatibility with older equipment. The remote access feature ensures that users can check in on their property from anywhere, improving security awareness and peace of mind. With its robust recording capabilities and easy integration, the Speco 6 Channel Hybrid DVR delivers reliable, high-performance surveillance for any environment.

In The Box:

  • DVR Unit
  • Power Cable
  • Ethernet Cable
  • Optical Mouse
  • Quick Start Guide

Notes:

  • Hard drives not covered by 5-year warranty.
  • USB device not included.
  • Smart Analytics requires Analytic Cameras connected to the DVR, sold separately.
p class="DHA_NoInternationalSale">Available for sale only in the U.S.

Tech Specs

  • Part Number:
    • H6HRN2TB: 2TB
    • H6HRN4TB: 4TB
  • UPC:
    • H6HRN2TB: 030519034845
    • H6HRN4TB: 030519034869

System

  • OS: Embedded Linux

Video

  • Analog Only Input:
    • BNC x 4
    • BNC Interface (1.0Vp-p; 75Ω)
    • TVI/AHD/CVI: 1080P/720P/WD1 (live)
  • IPC Video Input:
    • 2 dedicated channels
    • Up to 5MP @30fps
  • Bandwidth: 16Mbps
  • Total Number of Channels: 6 CH
  • Output:
    • HDMI x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
    • VGA x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
    • BNC x 1: CVBS (used as the main or spot output)
  • Multi-screen Display: 1 / 4 / 6 / 8 / 9 / 13 / 16
  • Compression: H.264/H.265

Audio

  • Network Input: RCA x 4
  • Network Output: RCA x 1
  • Two-Way Audio: Take up channel one audio input
  • Compression: G.711 (U/A)

Recording

  • Resolution: 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 / D1
  • Frame Rate:
    • Analog Channel: 1080P@15fps; 720P / WD1 / D1 / 30fps (NTSC)
    • IP Channel: 30fps (NTSC)
  • Recording Mode: Manual, timer, motion, smart event

Search & Playback

  • Simultaneous Playback: Max 4 Channels
  • Search Modes: Time slice / time / event / tag search
  • Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
  • Playback Functions: Play, pause, FF, FB, digital zoom, etc

Alarm

  • Mode: Manual, motion, exception, smart event
  • Channel Input: 4 channels
  • Channel Output: 1 channels

Network

  • Interface: RJ45 100 Mbps
  • Protocols: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
  • Webclient: Max 5 online users monitoring
  • Mobile Device OS: Speco Blue, iOS, Android, SecureGuard® Client

Storage

  • HDD: SATA x1, max 16TB per HDD
  • eSATA: 0

Backup

  • Local: USB, USB mobile HDD
  • Network Backup: Yes

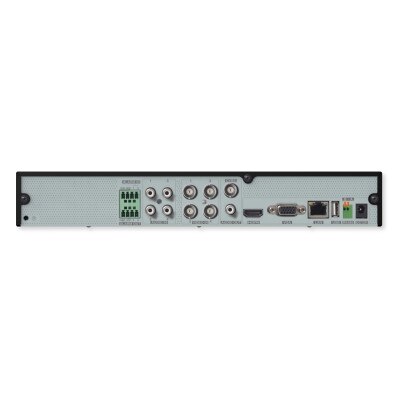

Ports

  • RS 485: Yes (half-duplex), connect to PTZ or keyboard
  • USB: USB 2.0 x 2
  • Remote Control: Optional

Power

  • Power Supply: DC12V/2A
  • Power Consumption: ≤10W (without HDD)

Physical

  • Dimensions: 11.8" x 9.8" x 1.77" (300mm x 249mm x 45mm)
  • Operating Temperature: -4 to 122°F (-10 to 50°C)
  • Operating Humidity: 10 to 90% non-condensing
