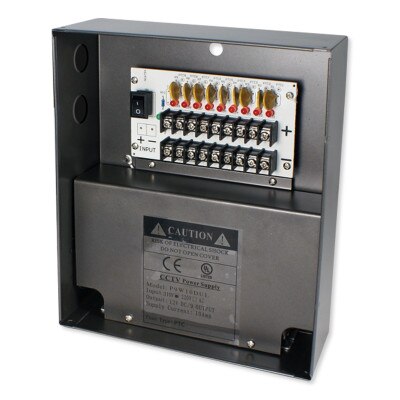

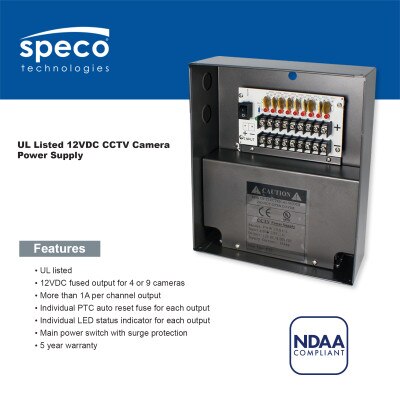

Speco CCTV Camera 12VDC Power Supply, 9 Channel, 10A Output
Product Description
The Speco CCTV Camera 12VDC Power Supply, 9 Channel 10A Output, is a high-quality, UL-certified power distribution unit that provides 12VDC power to up to 9 CCTV cameras, delivering a total of 10 amps across all channels. Each channel is individually fused, offering added protection and reliability for your security setup. Designed for both residential and commercial use, the P9W10DUL helps you streamline power management for multiple cameras from a single, centralized source. With a rugged metal enclosure and clear labeling, this unit is a dependable solution for organizing and safeguarding your CCTV power infrastructure.
- Powers up to 9 CCTV cameras with 12VDC power
- Total power output of 10 amps across 9 individually fused channels
- UL certified for safety and code compliance
- Each output is protected with a replaceable automotive-style fuse
- LED indicators show power status for each channel
- Durable metal cabinet with lockable door for secure installation
- Built-in circuit protection helps prevent short circuits and overloads
- Easy-to-use terminal block connections for fast setup
Why You Would Use This Product:
The Speco P9W10DUL is perfect for anyone setting up a multi-camera security system around their home. Use it to power cameras monitoring your driveway, backyard, front door, garage, and more – without needing separate adapters or messy wiring. With the ability to deliver consistent, protected power to all cameras from a single point, this unit is great for both DIY enthusiasts and professional installers. It's especially useful in larger homes or properties where multiple cameras are spaced throughout different areas, offering a reliable and clean power solution.
In The Box:
- 2-Channel RF Receiver
- Manual
Available for sale only in the U.S.
Tech Specs
- Part Number: P9W10DUL
- UPC: 030519005487
- Fuse Type: 9 ch PTC 1.3A / 60V
- Input: 3 pin AC socket
- Output: 12VDC output
- Power Requirement: 9 ch. 110VAC, 50 / 60Hz
- Operating Temperature/Humidity: 32°F – 104°F / RH 20% – 90%
- Storage Temperature: -4°F – 140°F ( -20°C – 60°C)

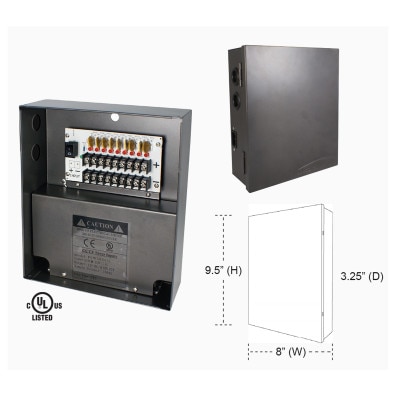

- Dimensions: 8(W) x 9.5(H) x 3.25(D) (203 x 241 x 82mm)
- Weight: 4.5 lbs.
- Certifications:
- UL Listed
- Compliance with NDAA Section 889 Part B Guidelines
- Warranty: 5 Years
