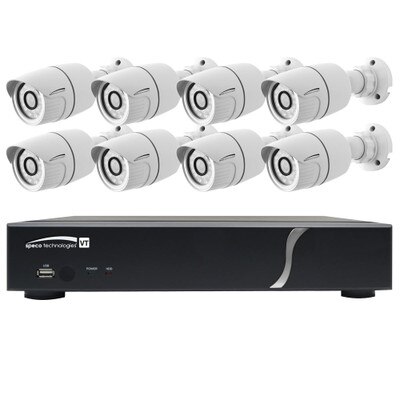

Speco HD-TVI Kit: 8-Channel DVR with 8 Bullet Cameras

$1,109.02
Item # SPZIPT88B2

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

8 Ch. HD-TVI DVR and Camera Kit

DVR Features

  • FREE SecureGuard VMS Now
  • 8 channel HD-TVI 1080p DVR, 2TB
  • 1080p at 15fps / 720p at 30fps over coax (HD-TVI)
  • Backwards compatible with all analog cameras
  • Signal distance up to 1600 feet
  • Video Out: 1 HDMI, 1 VGA, 1 CVBS
  • H.264 video compression
  • Networkable DVR with free Speco DDNS server
  • 3 year warranty
  • EZ Wizards
    • Setup: for quick system setup
    • Network: network setup and port forwarding
    • Record: quickly setup recording resolutions and recording type
  • EZ Search: quickly search events from thumbnails
  • EZ Copy: auto copy what you are playing onto a USB flash drive

Camera Features

  • HD-TVI 1080p at 30fps
  • 3.6mm fixed lens
  • Weather resistant
  • IP66 compliant
  • 2 year warranty

In The Box:

  • 1 x HD-TVI DVR, 8-Channel, 2TB
  • 8 x HD-TVI 1080p Outdoor IR Bullet Cameras, White

NOTE: To preserve signal quality and distance, Speco Technologies recommends using coax with a 100 percent copper center conductor and at least 95 percent braided copper shield.

  • Part Number: ZIPT4B1

HD-TVI 1080p Outdoor IR Bullet Cameras

  • Lens: 3.6mm fixed lens
  • Image Sensor: 1/3" 2MP CMOS
  • Resolution: 1080p/720p
  • Minimum Illumination: 0 lux at F2.0 (IR on) / 0.1 lux at F2.0 (IR off)
  • S/N Ratio: 50dB
  • Motion Detection: Yes
  • Day/Night: IR-cut filter
  • DNR: 2D/3D Automatic
  • Number of IR LEDs: 28
  • IR Range: 60 feet (depending on scene reflection)
  • Power Supply: 12VDC (power supply not included)
  • Power Consumption: 400mA (IR on)
  • Operating Temperature: -4° to 104°F
  • Weight: 9.6 ounces
  • Dimensions: 2.5(Dia.) x 7.2(L) inches
  • Warranty: 2 Years

HD-TVI DVR, 8-Channel, 2TB

  • Power Supply Voltage: 12VDC, 3A
  • Operating Temperature: 41° to 104°F (5° to 40°C)
  • Storage Temperature: 14° to 122°F (-10° to 50°C)
  • Operating Humidity: 20 to 80 percent (non-condensing)
  • Weight: 3.3 pounds (1.5kgs)
  • Dimensions: 13.4(W) x 10.31(H) x 2.48(D) inches (340 x 262 x 63 mm)
  • Warranty: 3 Years

Video

  • Input:
    • Number of Channels: 8
    • Signal Distance: Up to 1,600 feet (depending on coax quality)
    • Input Level Composite: 1.0Vp-p, 75 ohms
    • Signal Format: NTSC / PAL
    • Video Loss Check: Yes
  • Output:
    • HDMI: 1 HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)
    • VGA: 1 VGA (1024x768, 1280x720, 1280x1024, 1920x1080)
    • CVBS/Spot: 1 main or 1 spot

Audio

  • Input: 4 line input
  • Output: 1 line output
  • Audio Codec: G.711

Sensor / Alarm

  • Sensor Input: 4 channel (NC/NO selectable)
  • Alarm Output: 1 alarm out by sensor, motion, video loss, HDD temperature and HDD failure

Serial

  • RS-485: 1 – PTZ

Recording

  • Compression: H.264
  • Multi-Operation: QUADPLEX (play / record / network / backup)
  • Resolution:
    • 1080p TVI: 120fps
    • 720p TVI: 240fps
    • 960H Analog: 240fps
  • Recording Mode: Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor
  • Motion Detection: Motion detection setup by grid
  • Recording by Channel's Resolution: Yes
  • Pre-Recording: Max. 20 minutes
  • Post-Recording: Max. 60 seconds

Playback

  • Multi-Decoding: 1, 4, 8
  • Search Mode: EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log

Storage

  • HDD:
    • Interface Type: Serial ATA
    • Capacity of 1 HDD: Up to 4TB
    • Internal HDDs: 2
  • Backup:
    • USB Flash Drive: Video and Still Image
    • USB External HDD: Video and Still Image
    • Network: Video and Still Image
  • USB Ports: 1 front, 1 rear

User Interface

  • Menu Display: GUI
  • Input Method: IR, Mouse, Keyboard Controller

Network

  • Interface: 10/100 Base-T
  • Streaming: CIF 15fps / channel max

Network Access

  • Mobile Viewer: Live, Search, PTZ, 2-Way Audio
  • PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)
  • PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)
  • MAC Client: Speco Client for MAC and SecureGuard® CMS (Live, Search, Backup, PTZ, Remote Setup)

Additional Features

  • Digital Deterrent: Default + up to 8 custom audio files
  • Digital Zoom: Yes
  • DLS (Daylight Savings): Yes
  • EZ Record: Yes
  • S.M.A.R.T: Yes
  • Internal Beep: By video loss, HDD error Multi-Language English / Spanish / French
  • Dynamic DNS: Yes (free Speco DDNS)
  • SW Upgrade: USB and remote software upgrade
  • Email Notification: Yes
  • NTP (Network Time Protocol): Yes
